Air Handler Replacement Guide for Tucson Homeowners
- Aug 18
- 10 min read
An air handler usually becomes a replacement decision between 15 and 25 years, with typical installed costs landing between roughly $1,800 and $3,500. If yours is near that age and needs repeated repairs, replacement often makes more sense than continuing to patch an aging system.
A Tucson homeowner often reaches this decision in an ordinary way. The unit in the closet starts humming after years of quiet service, a bedroom feels warmer than the rest of the house, or water appears beneath the cabinet during a long cooling cycle. The question isn't whether the fan still runs. You need to know what the indoor unit does, whether it still matches the outdoor equipment, and whether your contractor will measure the system before recommending a sale.

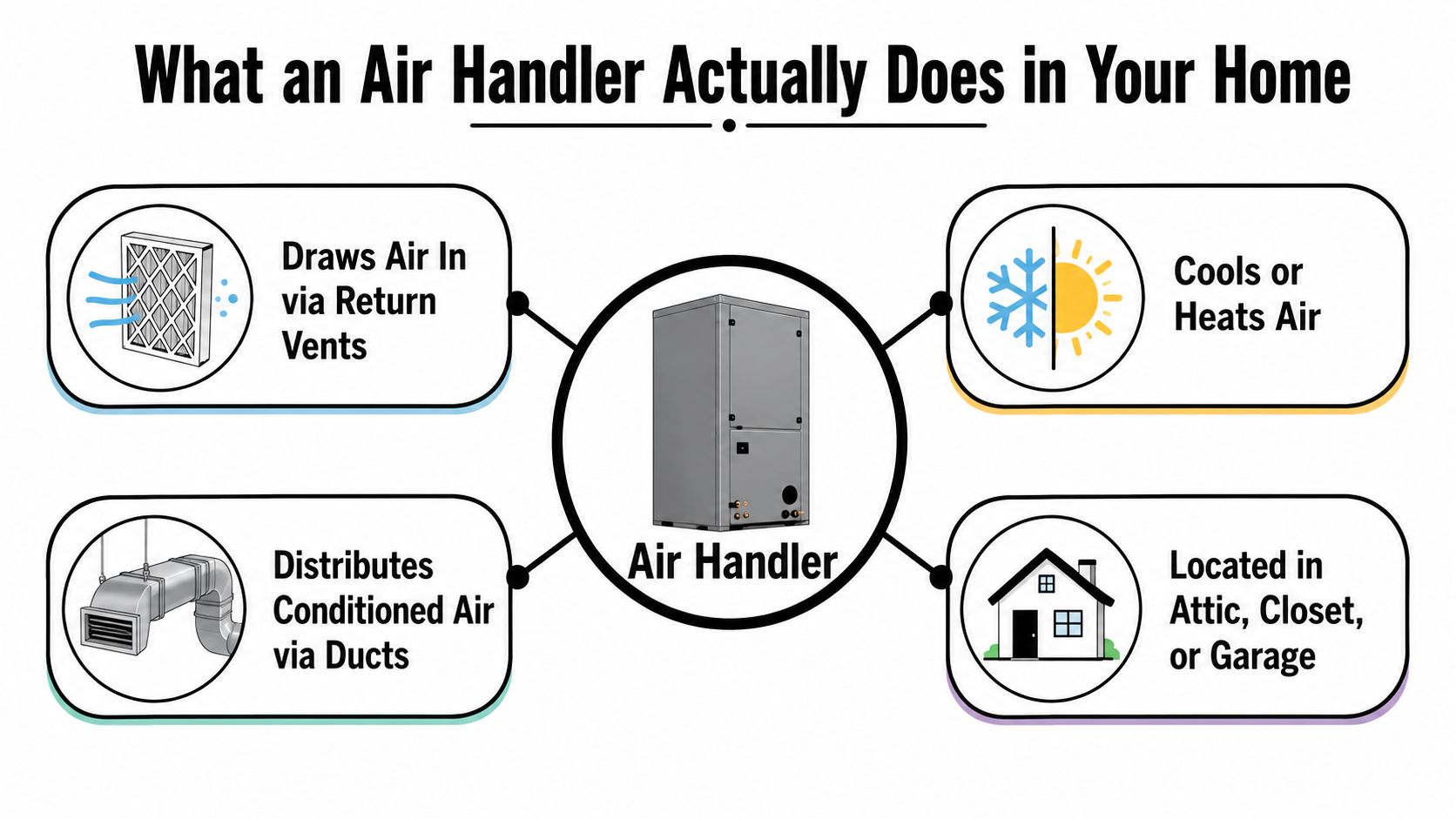

What an Air Handler Actually Does in Your Home
Your air handler is the indoor half of a split HVAC system. Think of it as a fan and conditioning station: the blower pulls air from return vents, the filter catches airborne particles, and the evaporator coil changes the air temperature before the blower sends it through the ducts.
In a Tucson home, the cabinet may sit in an attic, hallway closet, garage, or utility space. Open the access panel only if the equipment is safely powered down, then identify the main parts:
Filter rack: Holds the filter in the return-air path.
Blower motor and wheel: Pushes air through the home. It may use a single-speed, multi-speed, or variable-speed design.
Evaporator coil: Transfers heat between indoor air and the refrigerant circuit.
Condensate pan and drain: Collect water created when warm indoor air meets the cold coil.
Control board and wiring: Coordinates the thermostat, blower, coil operation, safety controls, and accessories.
The outdoor condenser or heat pump handles the outdoor heat exchange. The thermostat requests heating or cooling, the outdoor unit moves heat through the refrigerant circuit, and the air handler distributes the resulting conditioned air. The ductwork then determines how much of that air reaches each room.
An air handler isn't the same as a gas furnace. A furnace creates heat by burning fuel, while an air handler moves air and may work with an outdoor heat pump for both heating and cooling. That distinction matters when a contractor proposes replacing a furnace with an electric air handler, because the electrical supply, controls, and matched outdoor equipment may change.
Airflow also affects indoor air quality and humidity. A clean filter and sound coil help, but replacement alone won't solve every dust or moisture problem. For a broader, evidence-focused look at filtration, ventilation, and other measures, review these evidence-based IAQ strategies for 2026, then ask whether the new installation can support the needed components. Covenant Aire Solutions also explains the equipment basics in its guide to residential air handlers.
Warning Signs That Point Toward Replacement
Some symptoms call for diagnosis, not an immediate purchase. Others show that the equipment has moved beyond a sensible repair cycle.
Start with the serious red flags
An air handler approaching or exceeding 20 years deserves a replacement conversation, especially when its failures are no longer isolated. ASHRAE service-life data summarized in a national replacement guide records constant-volume air handlers with a mean age of 25.9 years still in service, a mean removal age of 34.7 years, and a median removal age of 40.0 years among replaced units. The data shows why age is a planning signal, not an automatic expiration date. ASHRAE service-life evidence and replacement guidance
Visible corrosion on the cabinet, coil, or condensate pan is more concerning than surface dust. Rust can indicate persistent moisture, a weakened pan, or a coil that may eventually leak. Repeated blower-motor failures suggest that the motor, bearings, electrical controls, or airflow conditions are stressing the system.
A refrigerant leak that returns after repair also changes the decision. The leak may be in the coil, tubing, or connection points, and replacing one component won't necessarily address an aging matched system.
Treat comfort complaints as diagnostic clues
Weak airflow at several registers can come from a failing blower, a dirty coil, a restrictive filter, crushed ductwork, or excessive static pressure. Hot and cold spots that remain after obvious register adjustments point toward duct design, leakage, inadequate return air, or incorrect blower operation.
Musty odors often involve the coil, drain pan, or standing condensate. An overflowing pan after the drain has been cleaned may indicate poor drainage, an installation problem, or a cabinet and pan that no longer protect the surrounding structure.
Watch for ice on the suction line, short cycling, unexplained increases in summer electricity use, grinding, or persistent whistling. None of these symptoms proves that replacement is required, but each gives a technician a starting point for testing. A structured HVAC system diagnostic process should identify the failing part before anyone recommends equipment.

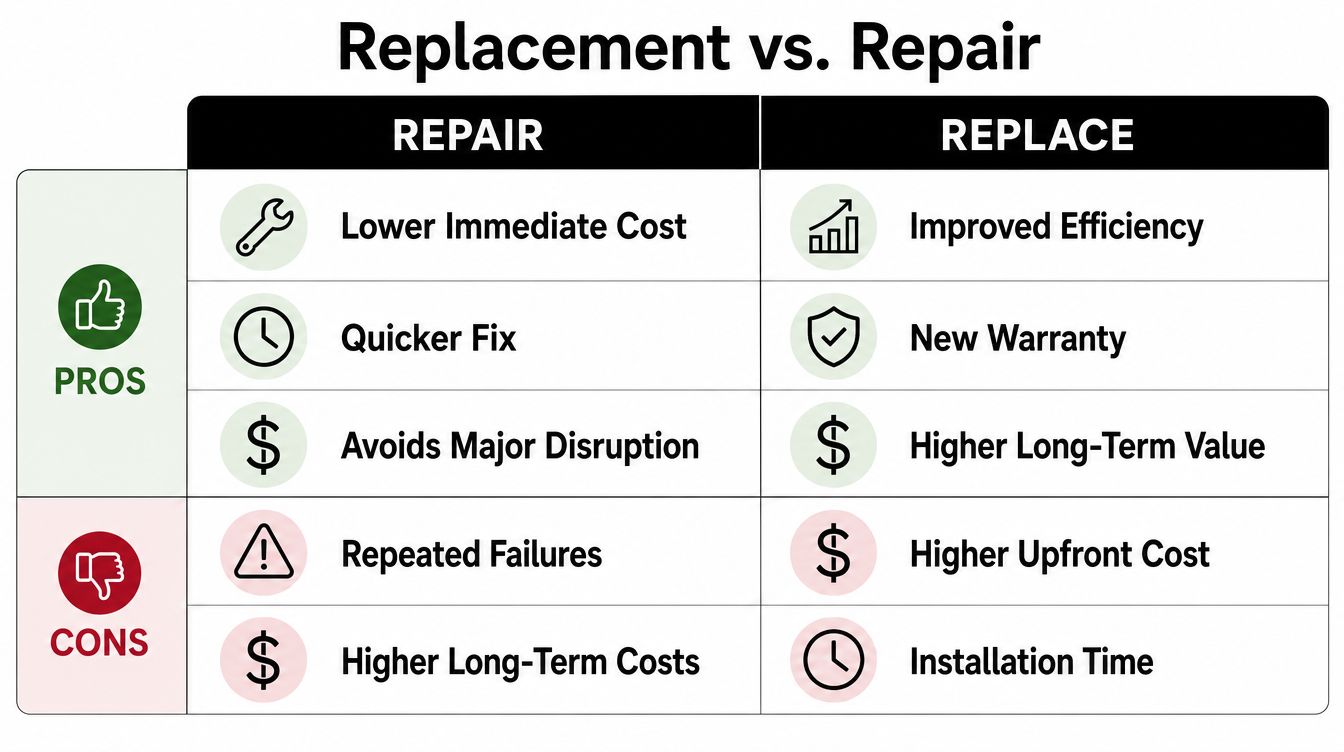

Replacement vs Repair and How to Decide
A repair generally makes sense when a relatively young air handler has one failed component, the part is still available, and warranty coverage applies. A failed capacitor, control board, or blower motor does not automatically require replacing the entire cabinet.
Replacement deserves closer consideration when age, recurring failures, and compatibility point in the same direction. A single repair may cost a few hundred to a few thousand dollars. National guides place replacement benchmarks in the low-thousands. One guide reports an average installed cost of about $2,800, with a typical range of $1,800 to $3,500 and a broader range of $1,500 to $4,200. It lists equipment at $700 to $1,600 and labor at $800 to $1,800. Replacement cost and service-life guide
The commonly used 50 percent rule asks whether the repair approaches half the cost of a suitable replacement. Use it as a starting point, not an automatic verdict. Repairing an older unit with obsolete refrigerant and an outdoor condenser that is also failing carries more risk than repairing a younger, well-matched system with warranty protection.
Decision rule: Compare the repair invoice with the equipment's remaining reliability, not just with today's cash price.
Choose repair when the failure is isolated, the capacity and refrigerant remain compatible, and the rest of the system is healthy. Replacement fits better when major components fail repeatedly, the coil or cabinet is corroded, parts are difficult to source, or the outdoor unit is nearing the end of its useful life.
In Tucson, ask for measurements before approving either option. A contractor should check system matching, ductwork, and static pressure. Replacing the air handler without correcting restricted airflow can leave the new equipment working under the same strain.
A maintenance history makes the decision clearer. Records from predictive HVAC maintenance can show whether the problem is one unusual failure or a pattern of declining reliability.
What Drives the Cost of Air Handler Replacement
A Tucson replacement quote reflects more than the cabinet on the invoice. Equipment, labor, access, system compatibility, ductwork, and final testing all affect the total. Use published benchmarks as a budgeting starting point, then expect the property and existing system to determine the actual scope.
Equipment pricing varies with capacity, brand, blower type, cabinet dimensions, controls, and efficiency requirements. A variable-speed blower may require different controls and more detailed setup than a basic single-speed design. Duct transitions, platform repairs, electrical changes, thermostat upgrades, condensate routing, and refrigerant-line work can each add labor.
Line Item | Typical Cost Range | What Drives the Price |
|---|---|---|
Air handler equipment | $700 to $1,600 | Brand, capacity, blower type, controls, and efficiency configuration |
Installation labor | $800 to $1,800 | Access, removal difficulty, connections, and local labor rates |
Complete installed replacement | $1,800 to $3,500 typical | Equipment, labor, scope, and site conditions |
Broader all-in project | $1,500 to $4,200 | Tonnage, brand, ductwork, electrical work, and installation complexity |
These ranges show why two homes can receive very different quotes. Review a HVAC replacement cost estimator before meeting contractors, then ask each one to connect every charge to a measured condition or specified equipment choice.
Ask the contractor to separate required work from optional upgrades. A damaged return plenum or unsafe electrical connection belongs in the required category. A new thermostat, enhanced filtration, or upgraded blower may offer value, but you should know its purpose and price before approving it.
Tucson conditions deserve their own questions
Older Tucson homes may need duct sealing, insulation repair, resizing, or replacement. Attic access can increase labor, while a tight closet may require cabinet modifications. Ask whether the quote includes disposal, permits, condensate protection, electrical work, refrigerant recovery, and any line-set replacement required by the selected equipment.
Monsoon conditions make surge protection and condensate management reasonable topics to discuss. These items are not automatically included because they relate to the air handler. A reliable contractor should measure system matching and ductwork static pressure before selling equipment. Otherwise, a new air handler can face the same airflow restriction as the old one. The written scope should show what was measured, what will be changed, and what the final price covers.

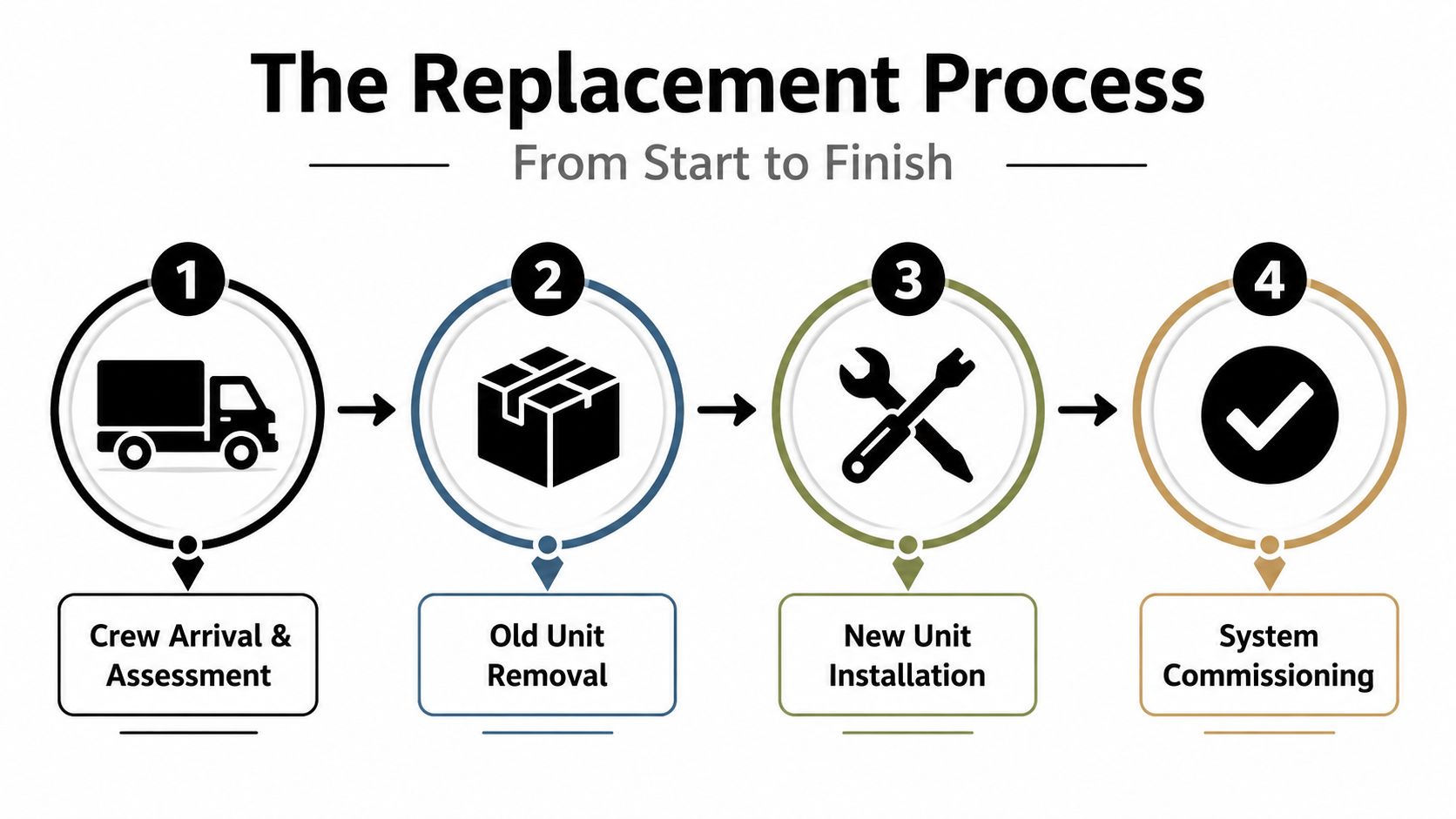

The Replacement Process From Start to Finish
A professional air handler replacement starts before installation day. The technician should inspect the current cabinet, duct connections, platform, electrical supply, drain route, refrigerant lines, and available service clearance. That visit gives the crew a realistic materials list and exposes problems that could otherwise become change orders.
The sizing process has two separate jobs. Manual J, the ACCA national ANSI-recognized residential load calculation standard, estimates the home's heating and cooling loads from building conditions. It applies to detached homes, small multi-unit structures, condominiums, townhouses, and manufactured homes. Manual S then selects equipment based on those calculated loads. ACCA Manual J standard Code guidance distinguishing Manual J and Manual S
On installation day, the crew generally follows this sequence:
Arrival and assessment: Confirm the equipment, protect floors, shut off power, and review the scope.
Removal: Disconnect the old wiring, refrigerant circuit, drain, ductwork, and controls before removing the cabinet.
Preparation: Repair the platform, transitions, return plenum, drain route, or electrical connections as specified.
Installation: Set and secure the new cabinet, connect ducts, wiring, controls, refrigerant lines, and condensate piping.
Testing: Evacuate and leak-check the refrigerant circuit, configure the thermostat, and verify heating and cooling operation.
Scheduling affects the homeowner's experience, especially during Tucson's busy weather periods. Clear arrival windows, material confirmation, and technician assignments are practical examples of field service scheduling strategies.
The final step is commissioning, not merely switching on the thermostat. The technician should measure supply and return static pressure, compare airflow with the manufacturer's blower table, verify temperature performance, inspect the drain, and document the matched equipment combination.
A short visual overview can help you recognize the sequence before the crew arrives:
Request model and serial numbers, registration instructions, warranty terms, test results, permits where applicable, and a record of any duct or electrical work completed.

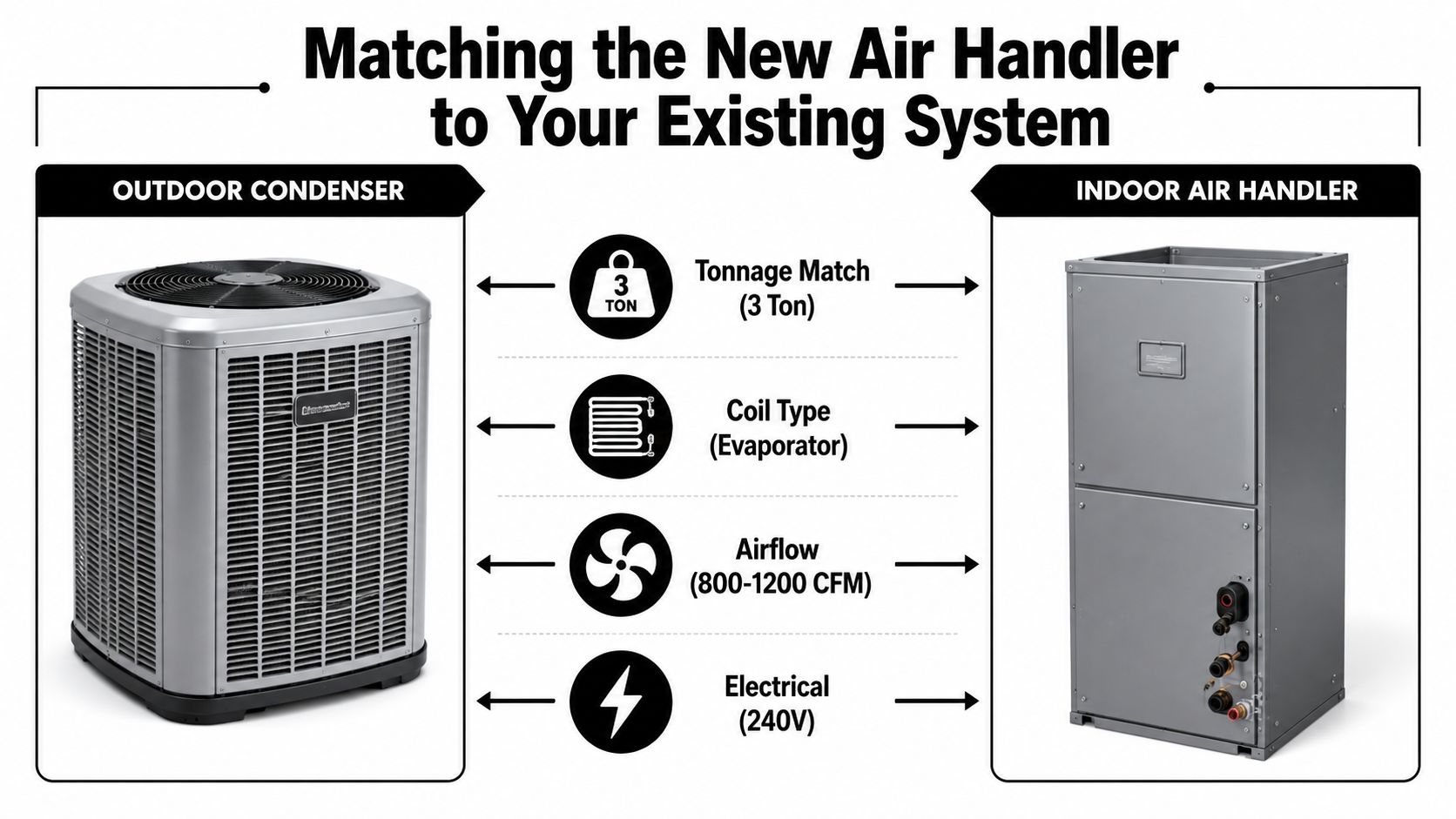

Matching the New Air Handler to Your Existing System
A like-for-like cabinet is not necessarily a like-for-like system. The indoor air handler and outdoor condenser or heat pump must appear as an approved combination in the manufacturer's installation instructions, and a partial replacement is compliant only when that exact pairing is listed and labeled. The installer should verify the AHRI-certified combination before ordering equipment.
The contractor also needs to confirm the refrigerant type, coil design, controls, electrical requirements, condensate provisions, and airflow target. A system can turn on and still be mismatched. The consequences may include poor capacity, control faults, lost efficiency, refrigerant problems, or warranty disputes.
Refrigerant changes can determine the scope
Newer A2L refrigerants introduce different pressure, oil, safety-device, and charge-management requirements. Some jurisdictions require replacing the entire indoor air-handling unit, including the coil, cabinet, and motor, when an older A1-rated indoor unit isn't approved for the new refrigerant. North Carolina mechanical code guidance states that the entire unit must be replaced in the applicable matched-system situation. A2L partial-replacement code guidance
Static pressure tells you whether the ducts and blower can deliver the intended airflow. Residential systems may operate across 0.30 to 1.0 inches water column, while many standard residential units have a maximum recommended value near 0.50 inches water column. Readings above that level often point to restrictive filters, undersized ductwork, return plenums, or dirty coils. Static-pressure and airflow guidance
Decide whether the outdoor unit belongs in the project
Replacing only the air handler can make sense when the outdoor unit is healthy and the manufacturer lists the new indoor combination. Replace both components when the outdoor equipment is also failing, the refrigerant architecture has changed, or no approved pairing exists. Trane's replacement guidance recommends replacing the refrigeration system together rather than mixing old and new components. Trane HVAC replacement guidance
If your home uses zones, ask the contractor to verify damper controls and airflow for each zone. A multi-zone HVAC system needs more than a cabinet swap because controls and distribution must work together.
Choosing a Tucson Contractor You Can Trust
The contractor you hire should be able to explain measurements in plain language. Start by verifying an active Arizona Registrar of Contractors license, liability insurance, workers' compensation coverage, and EPA Section 608 certification for anyone handling refrigerant. NATE or ACCA credentials can provide additional evidence of technician training, but they don't replace a written scope and careful testing.
A weak bid often begins and ends with the existing equipment label. A strong bid explains the load calculation, selected capacity, approved indoor and outdoor combination, duct condition, static-pressure readings, refrigerant plan, drain protection, electrical needs, warranty, and commissioning procedure.
Questions to ask before signing
Bring these questions to the appointment:
Sizing: Did you perform a Manual J calculation, and how did Manual S guide equipment selection?
Compatibility: What exact AHRI-certified combination are you proposing?
Airflow: Will you measure total external static pressure and verify airflow against the blower table?
Refrigerant: Does the proposed equipment use the same refrigerant, and does local code require a complete indoor replacement?
Ductwork: Are the return and supply ducts sized and sealed for the selected airflow?
Warranty: Which parts and labor are covered, for how long, and who handles registration?
Scope: Are permits, disposal, drain work, electrical changes, line-set work, and startup testing included?
Industry guidance commonly limits selected cooling equipment to no greater than 115% of the calculated load, or the next nominal size. Some sizing manuals also specify sensible capacity between 90% and 115% of the Manual J sensible load. Manual S sizing guidance Those limits explain why a contractor shouldn't match the old tonnage without checking the home and the equipment data.
Compare ownership terms, not only the quote total
Ask about financing and whether the company offers special rates for teachers, military personnel, or first responders. A preventive maintenance plan may include biannual check-ups, priority service during monsoon season, and exclusive discounts. Compare what each plan covers, rather than treating the word “maintenance” as a complete description.
A local company's online presence can also help you judge whether it communicates clearly, although marketing isn't proof of technical ability. Resources such as this 2026 growth guide for contractors are useful for understanding how companies present services, but your hiring decision should rest on licensing, measurements, documentation, and workmanship.
