Parts of Central AC: A Quick Guide to Your Home Cooling

When you look at a central air conditioning system, you’ll see it’s split into two main parts: an outdoor unit and an indoor one. Inside these units, you have the core components, the compressor, condenser coil, and evaporator coil. They all work together in a non-stop loop, pulling heat from inside your home and dumping it outside to keep you cool.

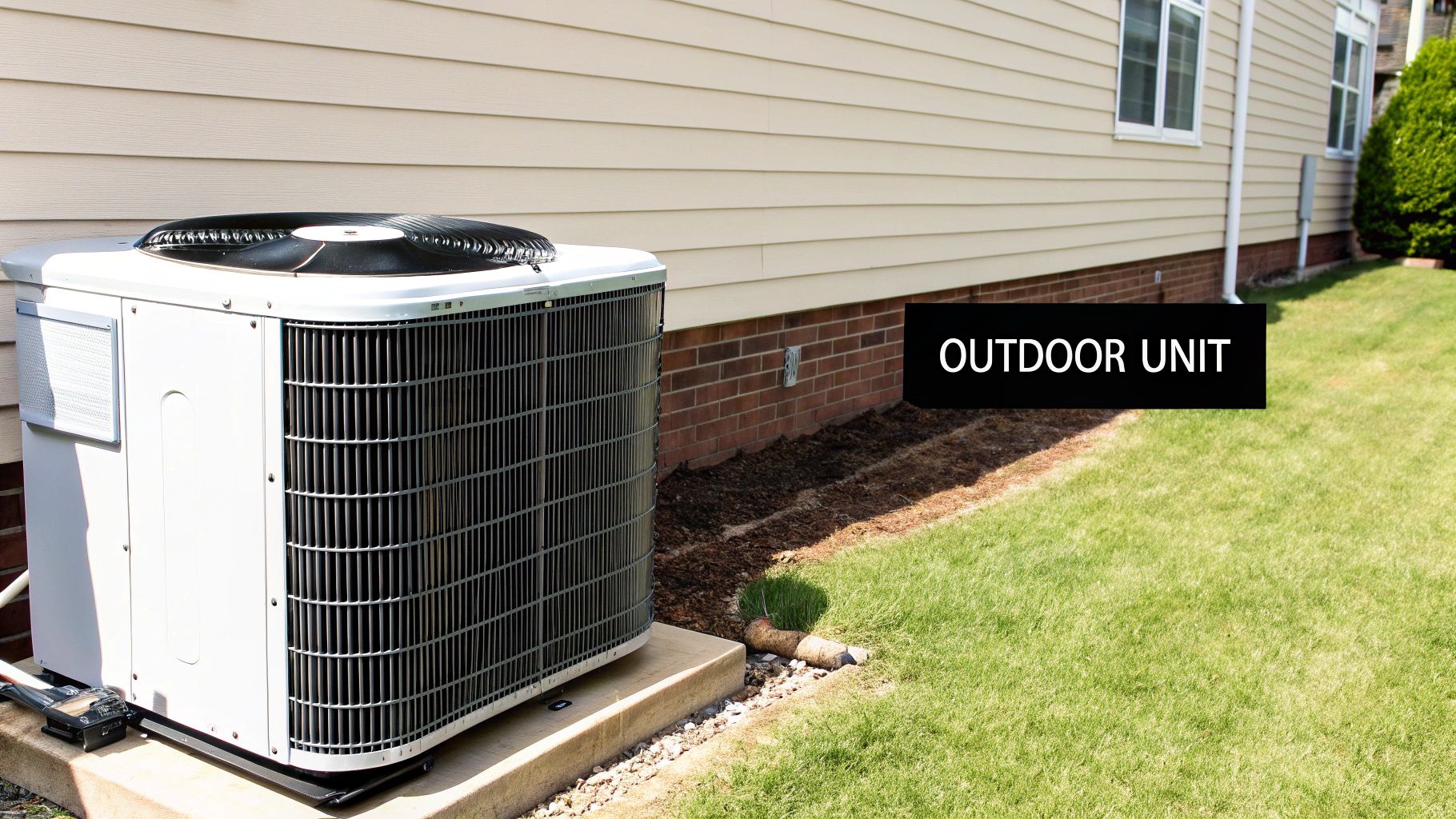

Your AC's Outdoor Unit: The System Powerhouse

Think of the outdoor unit as the engine of your entire AC system. This is where the real heavy lifting of cooling happens. Its whole job is to take the thermal energy that’s making your house warm and release it into the air outside. To pull this off, a few key components have to work in perfect sync.

Most people just call this whole box the condenser unit, since it houses all the parts responsible for getting rid of heat. If you want to dive deeper, you can learn more in our guide that breaks down what a condenser unit is and how it works. Understanding its role is the first step to really getting how your home stays comfortable.

Let's take a closer look at the key players inside this unit.

The Compressor: The Heart of the System

The compressor is, without a doubt, the most important part of your outdoor unit. It acts like the heart of your AC, pumping a special fluid called refrigerant through a network of copper lines. Its main task is to take the low-pressure refrigerant gas coming from inside your house and squeeze it.

This compression process skyrockets the refrigerant's temperature and pressure. Why? It prepares it to efficiently release all the heat it absorbed from your home. If the compressor isn't healthy, the entire cooling cycle grinds to a halt.

The Condenser Coil: The Heat Radiator

Once it leaves the compressor, that hot, high-pressure refrigerant gas flows straight into the condenser coil. You can think of this winding network of tubes, usually covered in thin metal "fins", as being a lot like the radiator in your car. As the refrigerant snakes through the coil, it starts shedding its heat into the surrounding air.

A clean coil is absolutely essential for your system to run efficiently. When dirt, grass clippings, and other gunk build up on the fins, it acts like a blanket, trapping heat inside and forcing your AC to work much harder than it should.

The goal of the outdoor unit is simple yet powerful: to effectively gather all the unwanted heat from your indoor air and expel it outside. Each component plays a specific role in making this heat transfer possible.

The Condenser Fan: The Air Mover

To help the condenser coil get rid of heat faster, there's a large fan right on top of the unit. Its job is to pull outside air through the coil's fins. This constant airflow whisks heat away from the refrigerant, allowing it to cool down and condense back into a liquid.

That humming or whirring sound you hear when your AC kicks on? That's the condenser fan doing its job.

To make it even clearer, here’s a quick rundown of the main components in your outdoor unit and what to watch out for.

Outdoor Unit Components at a Glance

This table breaks down the core parts, their jobs, and the common signs of trouble we see in the field.

Component	Primary Function	Common Problem Sign
Compressor	Pressurizes refrigerant, acting as the "heart" that pumps it through the system.	Loud buzzing or clanking noises; AC blowing warm air.
Condenser Coil	Radiates heat from the hot refrigerant into the outdoor air.	Reduced cooling efficiency; system runs longer than usual.
Condenser Fan	Pulls air through the condenser coil to help dissipate heat from the refrigerant.	The outdoor unit is hot to the touch; fan blades not spinning.

Understanding these parts helps you spot potential issues early. If you notice any of these signs, it's often a good idea to have a professional take a look before a small problem becomes a big one.

The Indoor Unit: Where the Cooling Magic Happens

Once the outdoor unit has done its job compressing and cooling the refrigerant, the action moves inside your home. This is where you actually feel the results of all that hard work: the refreshingly cool, dry air coming through your vents. The entire indoor setup is designed to pull heat and humidity out of your home's air and send comfort back in.

At the center of it all is the air handler. Often part of your furnace, this unit houses a powerful blower motor that’s the lungs of your entire HVAC system. It’s responsible for pulling warm, humid air from your living spaces through the return vents and then pushing the newly chilled air back out through the supply vents.

The Evaporator Coil: The Heat Sponge

The real star of the indoor show is the evaporator coil. Think of it like an ice-cold glass of sweet tea on a hot Tucson afternoon; it gets so cold that moisture from the air instantly beads up on its surface. As the air handler's blower pushes your warm indoor air across this frigid coil, two crucial things happen at once.

First, the coil acts like a heat sponge, literally soaking up the thermal energy from the air passing over it. Second, it strips excess humidity from that air, which is absolutely critical for feeling comfortable here in Arizona. This one-two punch leaves the air both cooler and significantly less sticky. If you've ever dealt with a frozen coil, our guide on evaporator coil replacement in Tucson dives deeper into just how vital this component is.

Simply put, the indoor unit’s job is to pull heat and moisture out of your home's air. The evaporator coil does the heavy lifting on the heat exchange, while the air handler makes sure that freshly cooled air gets delivered to every room.

The Expansion Valve: The Refrigerant Gatekeeper

For the evaporator coil to get cold enough to work its magic, it needs a tiny but critical partner: the expansion valve (sometimes called a metering device). This small valve sits right at the entrance to the evaporator coil.

Its job is to act like a gatekeeper, precisely controlling how much liquid refrigerant gets into the coil. By creating a bottleneck, it causes a sudden, dramatic drop in pressure. This pressure drop forces the refrigerant to rapidly expand and flash into an intensely cold gas. This carefully managed process is the secret sauce that creates the chilling effect needed to cool your home. Without it, the whole heat absorption process would stall, and you'd just have warm air blowing from your vents.

How Air and Refrigerant Circulate Through Your Home

An air conditioner is way more than just the boxes you see inside and outside your house. For it to work, it needs a complex circulatory system to move both the cold air and the refrigerant. Think of these pathways as being just as critical as any of the main parts of central AC. Without them, the whole cooling process would grind to a halt before it even got started.

The refrigerant lines are basically the veins and arteries of your AC. These are the insulated copper tubes connecting the outdoor unit to the indoor one, creating a sealed, closed loop. They're the highway the refrigerant travels on its endless journey of absorbing heat from inside your home and dumping it outside.

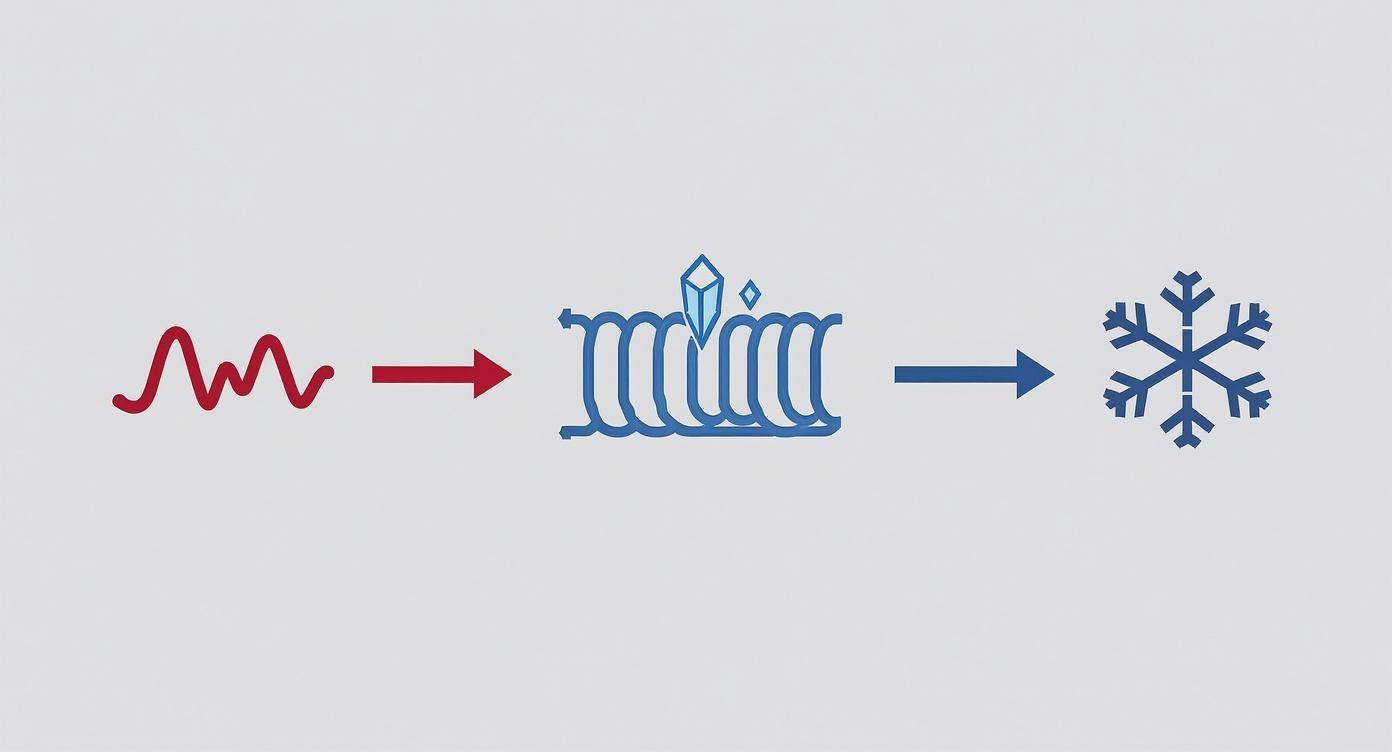

This diagram gives you a great visual of how that heat transfer process works.

As you can see, your system pulls in warm, humid air, passes it over the ice-cold evaporator coil (where the heat gets yanked out), and then pushes it back into your home as that cool, refreshing air you're looking for.

The Role of Ductwork and Air Filters

If refrigerant lines are the veins, then the ductwork is your home's respiratory system. This network of metal channels, usually hidden away in your walls, ceilings, and attic, is responsible for moving all that air around. It delivers the conditioned air from the air handler to every room and carries the warm air back through the return vents to get cooled all over again.

Standing guard over this entire network is one simple but absolutely crucial component: the air filter. Typically located right in the indoor air handler, the filter is the system's bodyguard. Its one job is to capture dust, pollen, pet dander, and all the other gunk floating around before it can get sucked into your expensive equipment.

A clean air filter is your number-one defense against an inefficient AC and poor indoor air quality. It stops contaminants from clogging up sensitive components and helps keep the air your family breathes much cleaner.

When that filter gets clogged, it chokes off the airflow. This forces the system's fan motor to work overtime just to pull air through, which tanks your cooling performance and drives up your energy bills. This is why changing your filter regularly is one of the most important maintenance jobs a homeowner can do.

Keeping the System Flowing

The circulation of air and refrigerant is a delicate dance, and every single component has a critical part to play.

• Refrigerant Lines: These tubes transport the essential cooling agent between the indoor and outdoor units. The type of refrigerant used has changed over the years; you can learn all about what replaced R-22 refrigerant in our guide.

• Ductwork: This is what distributes cool air evenly throughout your home, ensuring you don't have hot and cold spots. Leaky ductwork is a huge energy vampire and can account for up to 30% of energy loss in a typical home.

• Air Filter: It protects the entire system from damaging debris while simultaneously improving the air you breathe inside your home.

Without these vital pathways, even the most powerful compressor and the most efficient coils would be completely useless. They are what ensures the cooling your system generates actually gets to you.

The Brains and Controls That Run Your AC System

Behind every powerful cooling system is an intelligent control center pulling the strings. For your central AC, this means a few critical parts working in perfect harmony to deliver the automated comfort you count on. These components are what turn your simple request for cooler air into a complex, perfectly timed cooling cycle.

Think of the thermostat as the command center for the whole operation. It’s the part you see and interact with, constantly monitoring your home's temperature and telling the system exactly when to kick on and when to shut off.

But modern thermostats do a lot more than just read the temperature. Smart and programmable models let you build schedules around your family's routine, which can seriously cut down on energy use when you're away or asleep. Learning how to program a thermostat can boost efficiency and save you real money on your utility bills.

The Electrical Hub and Waste Management

While the thermostat gives the orders, it's the control board and other electrical parts that actually execute the commands. This circuit board, usually tucked away inside the air handler, is the system's central nervous system. It takes the signals from the thermostat and sends power to the right components at the right time: from the compressor and fans to the blower motor.

At the same time, the system has to manage a natural byproduct of cooling: condensation. That's where the condensate drain line comes in, handling the "waste management." This simple PVC pipe collects all the moisture the evaporator coil pulls from your air and channels it safely outside, preventing water damage and mold from growing inside your home.

All the sophisticated parts of a central AC system would be useless without the electronic controls and safety mechanisms that manage their operation. From the user-facing thermostat to the hidden control board, these components ensure reliable and automated cooling.

A clogged drain line is a very common problem that can actually cause the entire system to shut down as a safety measure.

Key Control Components and Their Roles

For your AC to run smoothly, these parts have to be perfectly in sync. Each one has a distinct job that contributes to the bigger picture.

• Thermostat: Your direct interface with the AC. This is where you set the temperature you want and create cooling schedules.

• Control Board: The electronic brain that processes signals from the thermostat and manages the operation of every other component.

• Condensate Drain: A vital plumbing line that keeps water from building up by safely removing condensation from the indoor unit.

To really get the most out of your AC's performance and embrace modern tech, you might want to look into smart home energy efficiency technologies that can integrate with your system's controls. These advancements can give you even more precise control over your home's climate and energy use.

Solving Common AC Problems With Simple Maintenance

Now that you know the cast of characters inside your central AC system, let's talk about what happens when one of them goes off-script. Understanding how to spot trouble is the next step. When your system starts acting up, the symptoms can often point you directly to the component that needs a little TLC.

This is empowering. It helps you know what you can handle yourself and when it's time to bring in the pros.

For instance, if your AC is running but the air isn't getting cool, the issue often traces back to the outdoor unit. It could be a compressor problem or maybe low refrigerant levels. If the airflow coming from your vents feels weak and pathetic, your first suspect should always be a clogged air filter or a blockage somewhere in the ductwork.

And that classic puddle of water around your indoor unit? That’s a tell-tale sign of a blocked condensate drain line. By connecting these common headaches to their source, you can take a much more active role in your system’s health.

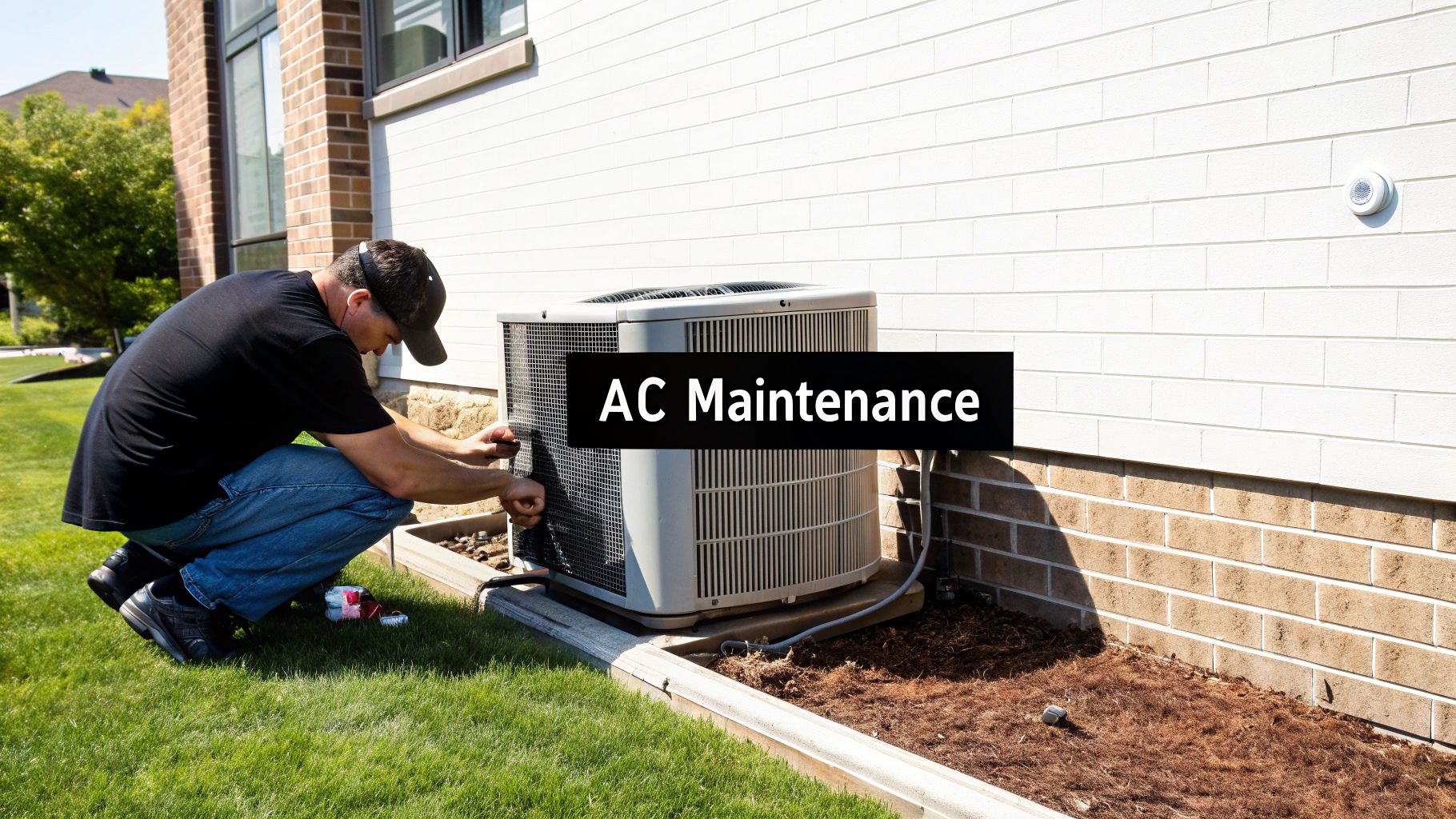

Your First Line of Defense: Homeowner Maintenance Tips

Plenty of common AC issues can be completely avoided, or fixed, with just a bit of basic upkeep. Getting into a simple routine can save you a lot of money on service calls down the road.

• Check and Change the Air Filter: Honestly, this is the single most important thing you can do. A clogged filter suffocates your system, restricting airflow and forcing everything to work harder. Check it every month and plan to replace it every 1-3 months.

• Clean the Outdoor Unit: Your condenser unit needs to breathe. Keep a clear zone of at least two feet around it, free of leaves, grass clippings, and any other yard debris. This is crucial for the condenser coil to release heat effectively.

• Inspect the Condensate Drain Line: Take a peek at where the small drain pipe exits your home. On a hot, humid day when the AC is running, you should see it dripping water. If it’s bone dry, that could signal a clog inside the line.

For a more detailed guide on getting your hands dirty, check out our post on how to properly clean your AC unit's components.

Ever wonder what an HVAC tech means by a "ton" of cooling? It's not about weight. The term comes from the days when cooling power was compared to melting one ton of ice over 24 hours. Today, one "ton" is equivalent to 12,000 British Thermal Units (BTUs) of cooling power per hour. So, a 3-ton system can remove about 36,000 BTUs of heat from your home every hour.

If your AC seems to be struggling even with these basic checks covered, the issue might be more complex. The following table can help you play detective before deciding on your next move.

Troubleshooting Common Central AC Issues

Symptom	Potential Faulty Part(s)	Recommended Action
AC won't turn on	Thermostat, Circuit Breaker, Controls	Check thermostat settings and breaker. If those are fine, call a professional.
Weak airflow from vents	Clogged Air Filter, Blocked Ductwork, Blower Motor	Change the air filter first. If that doesn't help, it's time for a service call.
Air isn't cold	Dirty Condenser Coil, Low Refrigerant, Compressor	Clean the outdoor unit. If there's no improvement, you need a technician.
Water leaking indoors	Clogged Condensate Drain Line, Drain Pan	Check for a visible clog at the drain line exit. If it's a major leak, call for service.
System cycles on/off constantly	Dirty Coils, Thermostat Issue, Oversized Unit	Change the filter and clean the outdoor unit. If short cycling continues, call an expert.
Loud, unusual noises	Blower Motor, Compressor, Fan Blades	Shut the system down immediately to prevent further damage and call for professional service.

This table is a great starting point, but remember that some issues have multiple potential causes. When in doubt, it’s always safest to get a professional diagnosis.

Knowing When To Call Covenant Aire Solutions

While DIY maintenance is fantastic, some jobs are strictly for a certified technician. Your safety is the top priority, especially when dealing with high-voltage electrical parts or pressurized refrigerant.

You should pick up the phone and call a pro immediately if you notice:

1. Loud, unusual noises like grinding, squealing, or banging from either the indoor or outdoor unit.

2. The system cycles on and off every few minutes without actually cooling the house.

3. Ice buildup on the copper refrigerant lines or anywhere on the evaporator coil.

4. A burning smell coming from your vents or the units themselves.

These symptoms often point to serious trouble with parts like the compressor, fan motor, or electrical controls, none of which are safe for a homeowner to mess with. And beyond just fixing what's broken, optimizing how your system uses power is key to keeping bills down; check out these 10 essential home energy efficiency tips for more ways to save.

Attempting complex repairs without the right training and tools can easily lead to more expensive damage or, worse, serious injury. For safe, effective, and reliable service, trust the experts at Covenant Aire Solutions to get the diagnosis right and solve the problem correctly the first time.

Your Central AC Questions Answered

We get it. Once you start digging into the different parts of a central AC system, a lot of practical questions pop up about how to take care of it and what to watch out for. Getting straight answers is the best way to feel confident about maintaining your system and knowing when you need to call for backup.

Think of this as your quick-reference guide. We’ve tackled some of the most common questions we hear from homeowners to help you understand what's really happening with your home's cooling system.

How Often Should I Replace My Central AC Air Filter?

As a general rule of thumb, you should plan on swapping out standard 1-inch air filters every 1 to 3 months. Honestly, this simple task is the single most important piece of maintenance a homeowner can do.

If you've got furry friends shedding all over or family members with allergies, you'll want to stick closer to the once-a-month mark to keep your air quality high. Some of the thicker, high-efficiency pleated filters have a bit more longevity and can last anywhere from 3 to 6 months.

A dirty, clogged air filter is like putting a roadblock in your system's airway. It chokes off the airflow, forcing your air handler to work overtime just to move air around. This absolutely tanks your efficiency, drives up your energy bills, and can eventually damage critical parts like the evaporator coil.

What Is Refrigerant and Why Is It So Important?

Refrigerant is the lifeblood of your air conditioner. It’s a specialized fluid that does the heavy lifting of moving heat from inside your home to the outside world, all in a continuous, closed-loop cycle.

This fluid constantly circulates between the indoor and outdoor units, transforming from a liquid to a gas and back again. It grabs heat from your indoor air when it expands into a gas inside the evaporator coil. Then, it carries that heat outside and releases it when it gets squeezed back into a liquid in the condenser coil.

If your system is low on refrigerant, it's not because it got "used up"; it almost always means you have a leak. A leak cripples your system's ability to cool and can cause catastrophic, often permanent, damage to the compressor. Since handling refrigerant requires special tools and an EPA certification, this is strictly a job for a trained professional.

Can I Replace a Single Part or Do I Need a New System?

Ah, the classic "repair or replace" debate. The answer really hinges on the age of your system and which part decided to fail. If you have a relatively new AC, replacing a single component like a fan motor or a capacitor is almost always the smart, cost-effective move.

But the math starts to look a lot different with older systems. If a major, expensive part like the compressor gives out on a system that's over 10 to 15 years old, you're looking at a pretty hefty repair bill.

In that scenario, it often makes more financial sense to put that money toward a brand-new, high-efficiency system that will come with a full warranty. A good technician can walk you through the numbers, comparing the repair cost against the long-term energy savings and reliability you'd get from a full replacement.

Why Is My Outdoor Unit Making a Loud Noise?

Those strange noises coming from your outdoor unit aren't just annoying; they're distress signals that point to a specific problem. You should never ignore them.

• Loud Buzzing or Humming: This almost always points to an electrical issue. The culprit is often a failing contactor or capacitor.

• Clanking or Banging: A sharp, metallic clanking could be something as simple as a loose fan blade hitting the protective cage, or it could be a very serious internal problem with the compressor.

• High-Pitched Squealing: That shrill, piercing noise usually means the fan motor's bearings are on their last legs and about to seize up.

If you hear any of these sounds, your best bet is to shut the system off at the thermostat and the circuit breaker to prevent any further damage. Then, give a professional a call to diagnose the problem and fix it safely before it turns into a complete system failure.

---
