Ever notice that big, noisy metal box humming away outside your house on a hot day? That's your condenser unit, and it’s basically the heart of your entire air conditioning system. Its main job is simple but absolutely critical: to take all the heat your AC pulls from inside your home and release it into the outside air.
The Outdoor Heart of Your AC System
Without that outdoor unit doing its thing, cooling simply wouldn't happen. The condenser is where the real magic of heat exchange takes place, allowing your system to deliver that wonderfully cool air you rely on.
Think of it like a radiator, but working in reverse. Your car's radiator gets rid of heat from the engine to keep it from overheating. In the same way, your condenser unit gets rid of the warmth it has collected from inside your house. It does this using a special fluid called refrigerant, which acts like a heat sponge, soaking up warmth indoors and carrying it outside to be released.
At its core, the condenser's job is to take hot, gassy refrigerant from inside your home and turn it back into a cool liquid. This transformation is what allows the entire cooling cycle to start all over again, keeping your home comfortable even when it's scorching outside.
A Look Under the Hood
Inside that metal casing, a few key parts work together to make this heat transfer happen. Understanding what they do is the first step in seeing how your whole AC system works.
Here’s a quick look at the essential parts of a condenser unit and the role each one plays in the cooling process.
Inside Your Condenser Unit
Component | Primary Function |
|---|---|
Compressor | The engine of the unit. It pressurizes the refrigerant, which makes it very hot. |
Condenser Coils | A network of thin metal tubes that carry the hot refrigerant gas. |
Fan | The large fan blade you can see. It pulls air across the coils to help cool the refrigerant faster. |
Together, these components ensure the refrigerant is ready to head back inside and absorb more heat.
By managing this process, the condenser keeps your AC running smoothly and efficiently. To see how these parts connect with the indoor components, check out our homeowner's guide to parts of a central air conditioner. It all starts with this outdoor powerhouse.
How Your Condenser Makes Your Home Cool
Think of your outdoor condenser unit as your home's personal heat bouncer. Its entire job is to grab all the unwanted warmth from inside your house and kick it to the curb, leaving you with that refreshing, cool air you love. This whole operation hinges on a continuous cycle powered by a special substance called refrigerant.
The refrigerant is basically a heat taxi. It starts its trip inside your home's evaporator coil, where it soaks up warmth from the air. This process turns it from a cool liquid into a low-pressure gas. Carrying all that heat, the gas then zips through copper tubing to the condenser unit waiting outside.
The Heat Exchange Process
Once that warm, gassy refrigerant arrives at the condenser, the real magic starts. The unit's powerhouse, the compressor, springs into action. It puts a massive squeeze on the refrigerant gas, cranking up its pressure and temperature until it becomes a superheated vapor.
This intensely hot vapor is then pushed into the condenser coils, that series of thin metal tubes you see wrapped around the unit. A large fan pulls outside air across these coils, which strips the heat away from the refrigerant. This is the exact moment your home’s indoor heat gets released into the great outdoors.

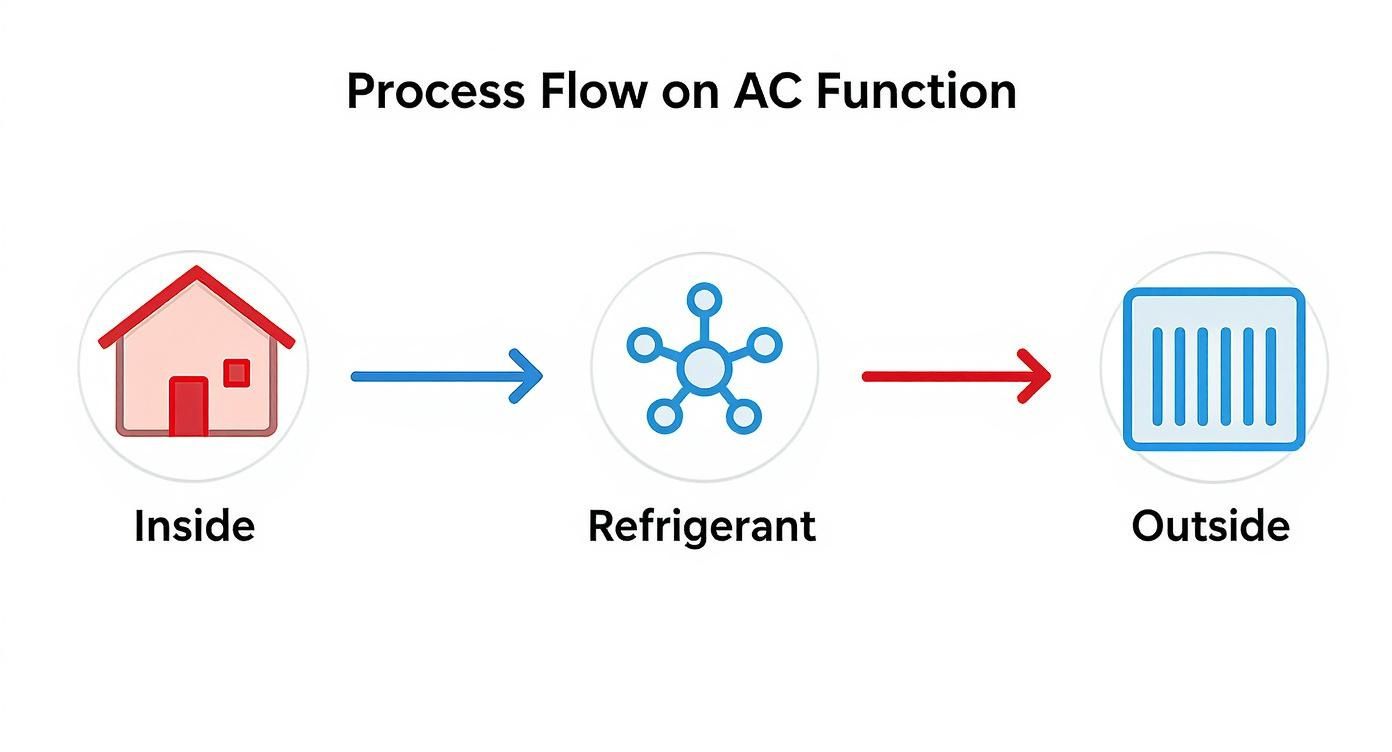

This handy infographic breaks down the process, showing how refrigerant acts as a shuttle for moving heat from inside your home to the outside.
As you can see, it's a constant loop. The refrigerant is always changing states to move heat as efficiently as possible.
Completing the Cooling Cycle
As the refrigerant sheds its heat load to the outside air, it starts to cool down and condenses back into a high-pressure liquid. This transformation is precisely where the "condenser" unit gets its name.
Now a cool liquid again, the refrigerant is ready for another round. It travels back inside to your indoor evaporator coil to absorb more heat, turn back into a gas, and start the cycle all over again. This process repeats itself thousands of times a day to keep your home at a comfortable, steady temperature.
This constant cycle of pressurizing, cooling, and depressurizing is the fundamental science behind how nearly all standard air conditioners and heat pumps operate. The condenser unit is where the critical heat-release phase happens.
Interestingly, some advanced systems can run this process in reverse. To see how this technology can provide both heating and cooling, check out what is a heat pump in our detailed guide. This dual functionality relies on the very same principles of heat exchange, all managed by that hardworking outdoor unit.
The Journey to Modern Home Cooling
The compact, quiet outdoor condenser unit you see today is the result of a long and fascinating journey. It’s hard to imagine now, but the earliest cooling systems were massive industrial machines, completely impractical for the average home. Getting from those factory-floor behemoths to the sleek systems we rely on took decades of brilliant engineering.
This evolution is really the story of how residential comfort as we know it came to be. Early pioneers faced the huge challenge of shrinking incredibly powerful cooling technology into something that could actually fit in a backyard.
From Industrial Giants to Home Comfort
The whole idea of modern air conditioning kicked off in the early 20th century. Visionaries like Willis Carrier were developing systems that could cool entire buildings, but these setups were enormous. They depended on industrial-scale condensers that were far too big, loud, and complex for a house.
A huge leap forward came in 1929 when Frigidaire introduced a split-system room cooler. For the first time, the condensing unit was separate and could be controlled remotely. This was a game-changer; it meant you could cool a single room without a giant machine sitting in it.
This very concept, separating the indoor and outdoor parts, laid the groundwork for the HVAC systems we all have today.
The Rise of Residential Cooling
Once that split-system idea was out there, the demand for home cooling exploded. Engineers refined the design, moving the noisy condenser outside and making home air conditioning not just practical, but much quieter too.
The real boom happened in the mid-20th century. As the technology got better and manufacturing ramped up, what was once an extreme luxury quickly became a standard feature in modern homes, completely changing how we live.
Technologies that use a condenser, like heat pumps, also took off. Just look at the numbers in the U.S.: heat pump production jumped from just 2,000 units in 1954 to over 300,000 by 1976. This incredible growth shows just how fast condenser technology became a cornerstone of modern life. For a deeper dive, you can explore the history of air conditioning innovations and see the full timeline.

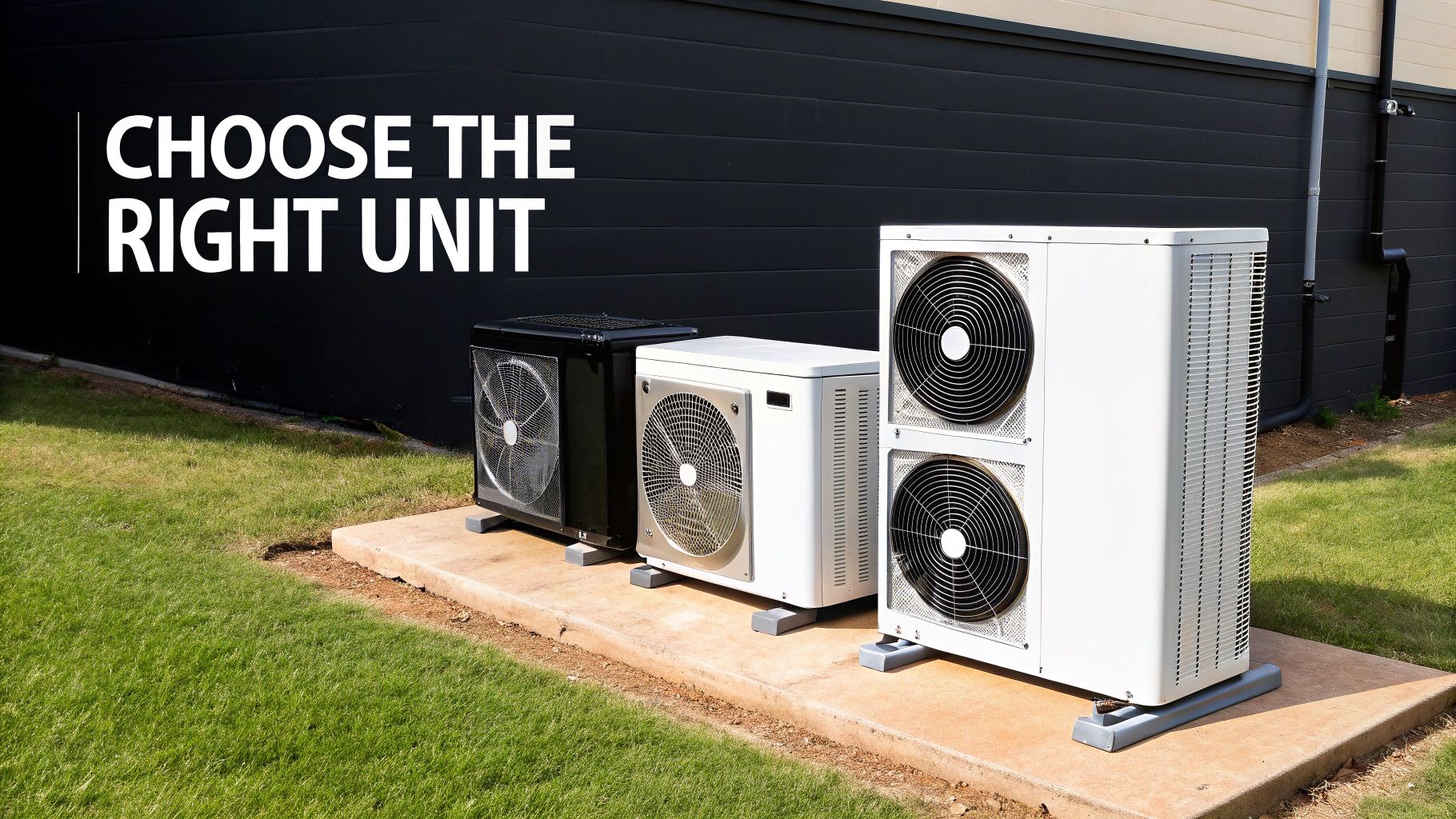

Choosing the Right Type of Condenser
Not all condenser units are created equal. When it’s time for a repair or replacement, understanding the differences between models is the key to balancing your budget, future energy bills, and your family's comfort. The choice you make will directly impact how efficiently your system cools your home and how consistent the temperature feels day-to-day.
Today’s market offers a few different types of condenser units, each operating on a slightly different principle. These variations determine how much power the unit draws and how precisely it can manage your home’s temperature.
The global market for these essential devices has grown significantly over the decades. Innovations from companies like Toshiba and Mitsubishi Electric were game-changers, introducing the first mini-split systems in Japan in 1961 and 1968 respectively. These were especially important in markets with limited space and helped drive worldwide adoption.
Comparing Your Condenser Options
So, what are your choices? The most common models you'll come across are single-stage, two-stage, and variable-speed units. Each one takes a distinct approach to cooling.
Single-Stage Condensers: Think of these as the most basic, straightforward option. They operate on an all-or-nothing basis, running at 100% capacity whenever your thermostat calls for cooling and then shutting off completely. This simple operation makes them a cost-effective choice upfront.
Two-Stage Condensers: A solid step up in performance, these units essentially have two settings: a low-power mode (around 60-70% capacity) for mild days and a high-power mode for those scorching summer afternoons. By running longer on that low setting, they provide more consistent temperatures and do a much better job controlling humidity.
Variable-Speed Condensers: This is the top-of-the-line option, offering the highest level of efficiency and comfort. Instead of just one or two settings, these units can make tiny, precise adjustments to their speed, running anywhere from 25% to 100% capacity.
To help you visualize the differences, here's a quick comparison of how these three types stack up against each other.
Comparing Condenser Unit Types
Unit Type | Efficiency | Upfront Cost | Temperature Control |
|---|---|---|---|
Single-Stage | Standard | $ (Lowest) | Basic (On/Off) |
Two-Stage | High | $$ (Mid-Range) | Better (High/Low) |
Variable-Speed | Highest | $$$ (Highest) | Precise (Micro-adjustments) |
Ultimately, a variable-speed unit is always fine-tuning its output to perfectly match your home's cooling needs. This results in incredibly stable temperatures, superior humidity removal, and the quietest operation of the three, often leading to significant long-term energy savings.
Understanding these differences is especially important when you have a split-system HVAC, where the outdoor condenser is paired with an indoor unit. For the best performance, you need a matched system. If you're curious about how these components work together, you might be interested in our guide on what is a split-system HVAC and how it works for your home.

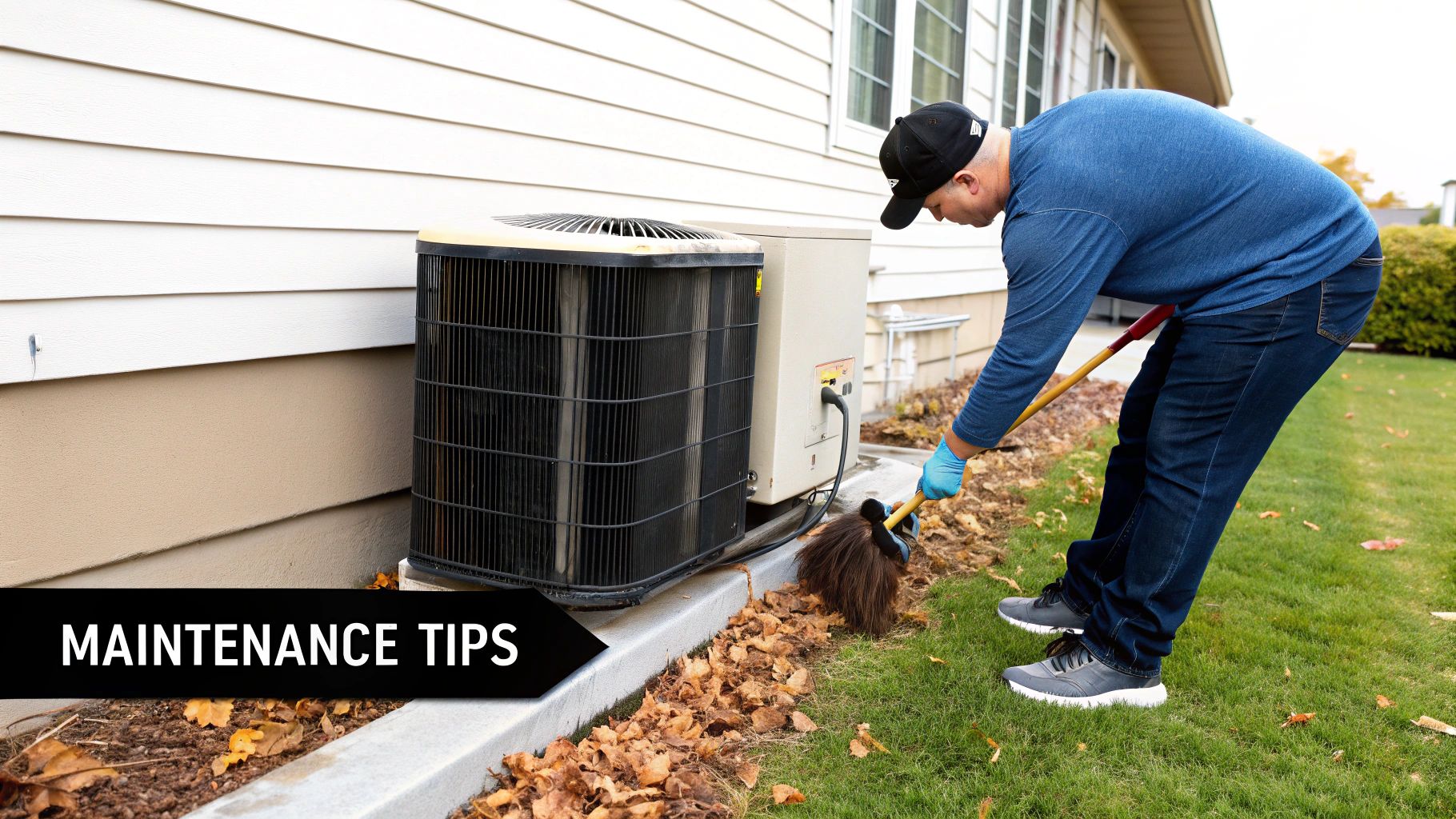

Keeping Your Condenser in Peak Condition
A happy condenser unit is an efficient one. That simple fact translates directly into lower energy bills, a longer life for your entire HVAC system, and reliable cooling when you need it most. The good news is, keeping your outdoor unit in top shape doesn't always require a call to the pros.
Just a little proactive care can make a world of difference. The most important job you can do is make sure the unit has plenty of room to breathe. It needs clear airflow to push all that heat it pulled from your house out into the atmosphere. When coils get clogged with dirt, pollen, or grass clippings, the system has to work much harder to do its job, leading to unnecessary strain and higher costs.
Modern condensers are engineering marvels, some are up to 50% more efficient than models from just a few decades ago! But all that incredible technology still depends on basic maintenance to perform at its peak.
Simple DIY Maintenance Tasks
While some jobs are strictly for the professionals, any homeowner can tackle a few key tasks to keep their system healthy and running smoothly.
Clear the Area: Grab your gardening gloves. Regularly trim back bushes, weeds, and branches to give the unit at least two feet of clear space on all sides.
Remove Debris: Gently sweep away any leaves, grass, or twigs that have settled on top of or around the unit's delicate fins.
Clean the Coils: You can give the metal fins a gentle cleaning with a garden hose. For a more detailed walkthrough, check out our easy DIY guide on how to clean condenser coils.
A quick word of caution: While these steps are straightforward, any task involving electrical components or checking refrigerant levels should always be left to a licensed HVAC technician. Safety first
Common Questions About Your Condenser Unit
Even after you get the hang of what a condenser unit does, a few practical questions usually pop up. Since it's the heart of your outdoor cooling system, its health has a direct line to your comfort and your wallet. Knowing the answers to common concerns can help you make smarter decisions about its care.
A big one we hear all the time is about lifespan. With a little TLC and regular professional check-ups, a typical condenser unit will serve you well for 10 to 15 years. Of course, things like your local climate, how hard you run your AC, and sticking to a maintenance schedule all play a huge part in how long it lasts.
Identifying Potential Problems
Knowing when your unit is in trouble is the key to avoiding a total system meltdown on the hottest day of the year. Your condenser will almost always give you a heads-up that it’s starting to struggle.
Keep an eye (and an ear) out for these red flags:
Weird grinding, squealing, or clanking noises that weren't there before.
The system is definitely running, but the air coming from your vents is weak or just not cold.
You spot any fluid leaks or puddles forming around the outdoor unit.
Your AC is kicking on and off way more often than it used to (this is called short-cycling).
If your AC is running but the air isn't cold, we've got a guide that walks you through the likely culprits. Check out our post on how to fix an AC unit running but not producing cold air.
Can I just replace the outdoor condenser and not the indoor unit? It's a common question, and while it might seem technically possible, it's almost always a bad idea for your system’s health and your wallet.
Think of your HVAC system as a perfectly matched set. The outdoor condenser and the indoor evaporator coil are engineered to work together in harmony. If you pair a brand-new, high-efficiency condenser with an old, worn-out indoor coil, you're asking for trouble. This mismatch can kill performance, spike your energy bills, and cause the new component to wear out way too fast. Always get an expert opinion to make sure you have a compatible and efficient setup.
When you need expert advice or professional service for your HVAC system, trust the certified technicians at Covenant Aire Solutions. Visit us online to schedule an appointment and keep your home comfortable all year long.
