Calculating HVAC Size for Your Home

Getting your HVAC size right is more than just a technical detail—it's the absolute foundation of your home's comfort and efficiency. Go too big, and you’ll create new problems. Go too small, and you’ll never be comfortable. The key is what we in the industry call right-sizing, and it all starts with a proper load calculation.

Why Accurate HVAC Sizing Is So Important

When it comes to your home’s heating and cooling system, the old adage "bigger is better" is a complete recipe for disaster. Getting the size wrong has real, tangible consequences that hit your comfort, your wallet, and even the air you breathe. It's truly one of the most critical decisions you'll make for your home's long-term health.

An undersized system is the more obvious problem. On those blistering hot or freezing cold days, it simply can't keep up. The unit will run and run, working itself to death but never quite hitting the temperature you set on the thermostat. This constant operation sends your energy bills through the roof and puts incredible strain on the equipment, dramatically shortening its lifespan.

The Hidden Dangers of an Oversized System

Here’s a surprise for many homeowners: the more common and sneakier issue is an oversized system. A unit that’s too powerful will blast your home with cold air, satisfying the thermostat so quickly that it shuts down before completing a proper cycle. This is called short-cycling, and it's a real troublemaker.

Short-cycling creates a cascade of problems you'll definitely feel:

• Poor Dehumidification: Your air conditioner is also a dehumidifier, but it needs to run for a while to pull moisture out of the air. When a unit short-cycles, it doesn’t run long enough, leaving you with a space that's cool but feels unpleasantly clammy and damp.

• Increased Wear and Tear: The startup is the hardest part of an HVAC unit's job. All that frequent starting and stopping puts immense stress on the compressor and other critical parts. This leads to more breakdowns and a much shorter operational life.

• Wasted Energy: It seems backward, but an oversized unit is actually less efficient. That constant starting and stopping eats up more energy than a correctly sized unit running longer, steadier cycles.

This isn't a rare occurrence. Research has shown that air conditioners are often oversized by an average of 20%. This mistake can lead to a 4% increase in energy consumption and costs. You can discover more insights about these HVAC efficiency findings and see how getting the size right directly impacts your utility bills.

The goal isn't just to make a room cold; it's to make it comfortable. A right-sized system masters both temperature and humidity, delivering consistent comfort without the hidden costs of an oversized unit.

At the end of the day, an accurate HVAC size calculation is all about finding that perfect balance. It ensures your system runs efficiently, keeps humidity in check, and provides steady, reliable comfort for years to come. For a more detailed walkthrough, don’t miss our guide on how to properly size an air conditioner for your home. Taking the time to get this right is an investment that pays you back every single day.

Moving Beyond Outdated Rules of Thumb

For years, a common shortcut for sizing an HVAC system was the "rule of thumb." You've probably heard it before, something along the lines of "one ton of cooling for every 500 square feet." While this might have been a decent starting point decades ago, relying on it today is a recipe for disaster. Modern homes are just a different breed.

This simplistic approach completely misses the mark. It fails to account for all the little details that actually drive your home's heating and cooling needs—it ignores your home's unique personality and construction.

Why Square Footage Alone Fails

Let's imagine two 2,000-square-foot homes sitting side-by-side. One was built in the 1970s with its original single-pane windows and barely any insulation. The other is a brand-new build with double-pane, low-e windows, a tightly sealed building envelope, and a thick layer of attic insulation. A rule-of-thumb calculation would spit out the exact same HVAC size for both, which is obviously wrong.

The modern home's energy-efficient features drastically cut down its cooling load, while the older home is practically bleeding conditioned air. Slapping the same size unit on both would leave the new home with a grossly oversized system, causing it to short-cycle and leave the air feeling damp and clammy.

This isn't a new problem, either. A historical survey of contractors found that a staggering 24.2% relied on these unreliable square-footage rules, which varied wildly from one ton per 350 to 700 square feet. Even more alarming, over a third admitted to intentionally oversizing systems just to avoid customer complaints. You can read the full research about these contractor habits to see just how common this practice became.

A guess based on square footage isn’t a calculation; it’s a gamble with your money and your comfort. An accurate result demands a scientific, data-driven approach that considers your home’s specific characteristics.

This precise method ensures your system isn't just powerful but also efficient and effective. When you combine proper sizing with routine check-ups, you get a system that runs optimally for years. In fact, you can learn about the top 8 benefits of HVAC maintenance to see how it all works together. The only reliable path forward is a detailed load calculation that treats your home as the unique structure it is, moving far beyond outdated and inaccurate guesswork.

The Manual J Calculation Explained

When you’re trying to figure out the right size for an HVAC system, you’ll hear a lot of shortcuts and so-called “rules of thumb.” But if you want to get it right, there’s only one method that truly matters: the Manual J load calculation.

Developed by the Air Conditioning Contractors of America (ACCA), this isn't just a simple formula. It's a comprehensive energy audit of your entire home, and it’s considered the industry’s gold standard for a reason. It’s the only way to know for sure how much heating and cooling your specific space actually needs.

Think of it like a forensic investigation into your home's unique energy profile. A proper Manual J calculation methodically accounts for every single factor that causes your home to gain heat in the summer and lose it in the winter. Instead of just plugging in your square footage, a pro will gather a ton of data to build an accurate thermal model of your house.

Key Inputs for an Accurate Load Calculation

A true Manual J calculation is far from a quick guess. A technician has to measure and document dozens of variables to get a clear picture. The accuracy of the final recommendation is completely dependent on how precise these inputs are.

Some of the most critical data points include:

• Local Climate Data: This isn't just about your city; it's about the specific design temperatures for the hottest and coldest days your area typically experiences.

• Home Orientation: Which way does your house face? The amount of direct sunlight hitting your windows and walls has a massive impact on heat gain.

• Insulation R-Values: A technician will document the thermal resistance of the insulation in your walls, attic, floors, and any crawl spaces.

• Window and Door Specs: The U-factor (how much heat transfers through) and the Solar Heat Gain Coefficient (SHGC) of your windows are absolutely critical pieces of the puzzle.

• Air Leakage Rates: This measures how "leaky" or "tight" your home is. The most accurate way to do this is with a professional blower door test.

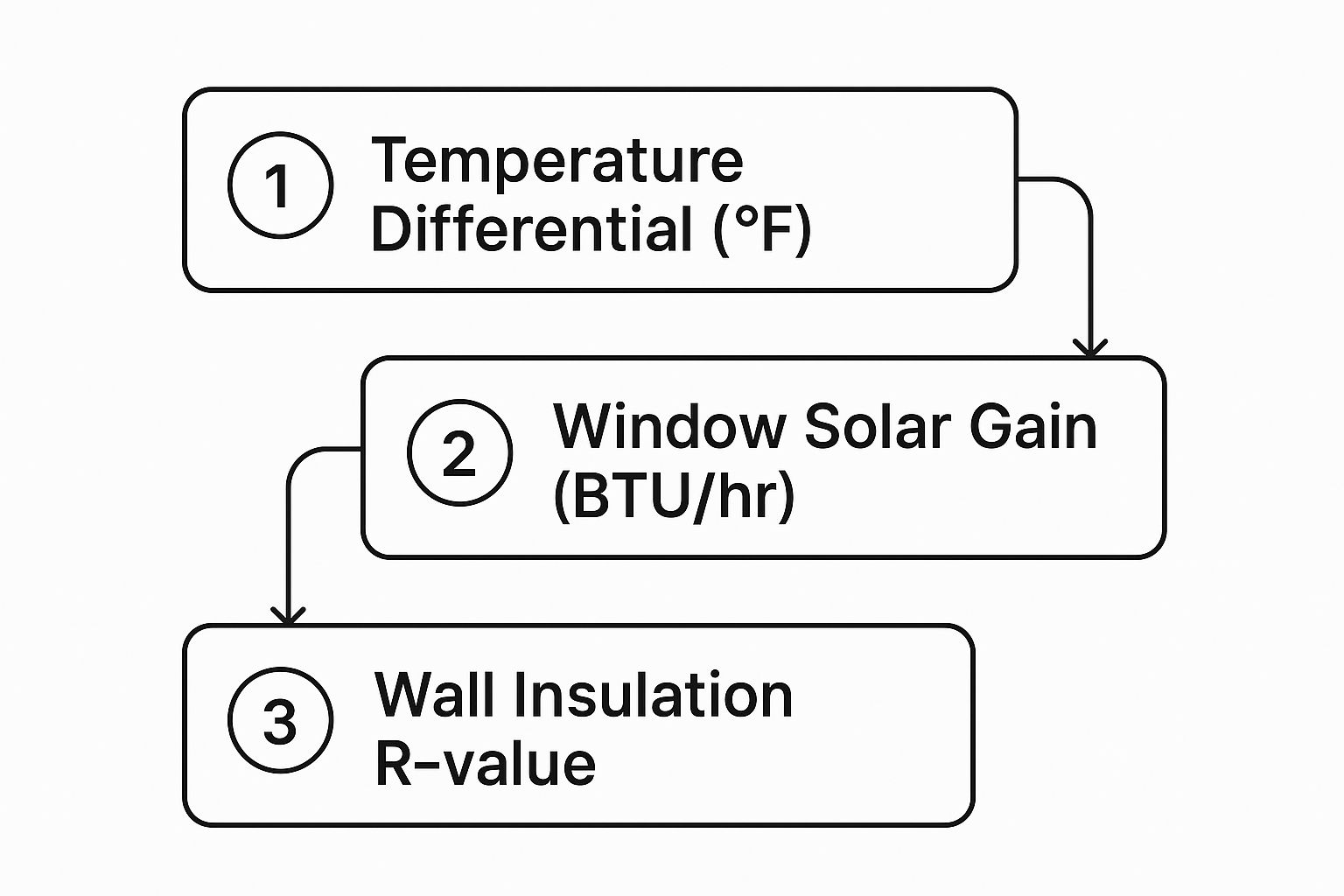

This infographic gives you a good idea of how these different elements—like temperature differences, solar gain from the sun, and insulation levels—are all analyzed to determine the final heating or cooling load.

As you can see, every part of your home contributes a certain amount of heat gain or loss. All those numbers are tallied up to find your total BTU requirement.

The science behind sizing HVAC systems has come a long way. Before Manual J became the standard, the industry relied on earlier methods developed by organizations like ASHRAE, such as the Cooling Load Temperature Difference (CLTD). You can learn more about the history of load calculation methods to see just how much more precise the process has become.

Before diving into the full calculation, it's helpful to understand the core variables at play. The table below breaks down the essential factors a technician needs to measure for an accurate Manual J calculation and explains why each one is so important for sizing your system correctly.

Factor	What to Measure	Why It Matters (Impact on HVAC Size)
Building Materials	Siding (brick, vinyl, stucco), roofing (shingles, tile, metal)	Different materials absorb and radiate heat differently, directly affecting the cooling load.
Insulation	R-value of insulation in the attic, walls, and floors	Higher R-values mean less heat transfer, reducing the size of the HVAC system needed.
Windows & Doors	Size, type (single/double pane), U-factor, SHGC, orientation	Windows are a major source of heat gain/loss. Their specs heavily influence the calculation.
Home Orientation	Direction the front of the home faces (N, S, E, W)	Determines how much direct sunlight hits windows and walls at different times of day.
Local Climate	Outdoor design temperatures for heating and cooling seasons	The system must be ableto handle the most extreme temperatures in your specific location.
Air Infiltration	Measured via a blower door test or estimated by age/construction	"Leaky" homes lose conditioned air and require a larger system to compensate.
Internal Loads	Number of occupants, major heat-producing appliances	People and appliances (ovens, dryers) generate heat, adding to the cooling load.
Ductwork	Location (attic, crawlspace), insulation level, and condition	Poorly insulated or leaky ducts in unconditioned spaces add a significant load to the system.

Understanding these factors helps you appreciate the level of detail required. It’s a far cry from a simple square-footage guess.

More Than Just the Building Envelope

A thorough calculation doesn't stop with the physical structure. It also has to account for the heat generated inside your home, which we call internal loads.

This includes the body heat produced by the number of people living there and even the latent heat coming from appliances like your oven, dishwasher, and clothes dryer. It all adds up.

A Manual J calculation isn’t just about getting a number; it’s about understanding your home’s unique energy DNA. It empowers you to have an informed conversation with your contractor and ensures your investment is based on data, not guesswork.

A system sized correctly based on a Manual J calculation will run more efficiently, last longer, and keep you far more comfortable. Of course, proper sizing is just the first step. To get the best performance, it needs to be paired with regular service. Our HVAC preventative maintenance checklist has some great tips for keeping your system in top shape.

When you're ready for a new system, insisting on a complete Manual J calculation is the single most important thing you can do to ensure you get a high-performing HVAC system that’s perfect for your home.

Conducting a Room-By-Room Load Analysis

While a whole-house calculation gives you the big picture of your home's total BTU needs, real, consistent comfort is found in the details. This is where a professional room-by-room load analysis makes all the difference, making sure every corner of your home gets the precise amount of cooling it requires. This is the secret weapon against those annoying hot and cold spots that plague so many homes.

Just think about your own house for a second. That home office with the huge, south-facing windows gets baked by the afternoon sun. On the flip side, the shaded, north-facing bedroom on the other side of the house stays pretty cool on its own. They might even be the same size, but their cooling needs couldn't be more different.

A room-by-room calculation is designed to account for exactly these kinds of unique situations. It goes way beyond just looking at total square footage and treats each room as its own little micro-environment.

Detailing Individual Room Loads

To get this right, a technician needs to dig into the specific factors that influence each room's heating and cooling demands. This detailed inventory is the blueprint for designing an airflow system that actually matches the needs of every single space.

This isn't a quick glance; it's a meticulous process of documenting variables for every room, including things like:

• Window Placement and Size: A big, west-facing window is a massive heat source compared to a small, north-facing one.

• Occupancy: How many people are usually in the room? A busy family room has a much higher heat load from body heat than a rarely used guest bedroom.

• Heat-Generating Electronics: That home theater setup with a big-screen TV, powerful speakers, and a couple of gaming consoles can crank out a surprising amount of heat. It all has to be factored in.

• Exterior Walls: A room with three walls exposed to the outside will lose or gain a lot more heat than an interior room with only one.

This is exactly why this method is so effective. It’s the difference between an HVAC system that’s merely "okay" and one that delivers personalized, even comfort to every room in your house.

A room-by-room analysis isn’t just about picking the right size AC unit; it's about designing the entire air delivery system. It ensures the right volume of conditioned air actually gets to each room, so you don't have one room that feels like a freezer while another stays stuffy.

The Foundation for Zoned Systems

This granular analysis is absolutely essential if you’re thinking about a zoned HVAC system. Zoning is fantastic—it lets you control the temperature in different areas of your house independently. But it only works if the system is built on an accurate understanding of each zone's specific load.

The room-by-room calculation provides the rock-solid data needed to design these zones correctly. For anyone looking to get the most out of their system, this targeted approach is key to unlocking major energy savings. You can learn more about how this plays into overall efficiency by checking out these 7 pro HVAC energy-saving tips for Arizona homes.

By taking the time for a room-by-room analysis, you’re not just buying an air conditioner. You're investing in a balanced, responsive system that makes your upstairs bedrooms just as comfortable as your downstairs living room, no matter what time of day it is.

From Numbers to Nuts and Bolts: Choosing Your Actual HVAC System

Getting an accurate load number from your Manual J calculation is a huge victory, but it’s just the first half of the game. That BTU number is your target; now, you have to find the right equipment to actually hit it. This is where we move from theory to the real world, ensuring the system you buy performs exactly as expected in your home.

This next phase is guided by another crucial industry protocol from ACCA called Manual S. If Manual J tells you what your home needs, Manual S tells you which piece of equipment can deliver it. Think of it as the official matchmaking service for HVAC, connecting your home's unique needs to a specific make and model.

Matching the Load with Manual S

Here’s a common scenario: your Manual J calculation determines your home needs 28,000 BTUs of cooling. The problem? Manufacturers don't make a 28,000 BTU unit. They typically produce equipment in half-ton increments, like a 2-ton (24,000 BTUs) or a 2.5-ton (30,000 BTUs). So, what do you do?

This is exactly why Manual S is so critical. It provides contractors with clear, engineered guidelines for selecting a unit that's a proper match. It allows for a slight oversizing to meet the load but prevents the common mistake of installing a system that's far too powerful, which leads to short cycling, poor humidity control, and wasted energy.

An accurate Manual J calculation is worthless if the equipment you install can't actually meet the demand. Manual S bridges this gap, preventing a great calculation from being wasted on a poor equipment choice.

Designing the Airflow with Manual D

Okay, so we've calculated the load (Manual J) and selected the perfect piece of equipment (Manual S). There’s just one more piece to the puzzle: getting the conditioned air where it needs to go.

This is where Manual D, the industry standard for designing a home's ductwork, comes into play. A proper Manual D design ensures your ducts are the correct size and shape to carry the right amount of air to each specific room, based on that initial room-by-room calculation. It accounts for things like friction and airflow velocity to prevent annoying issues like whistling vents, drafty spots, or rooms that are always too hot or too cold.

This professional trio—Manual J, S, and D—is the foundation of a truly high-performance HVAC installation.

• Manual J: Figures out the exact heating and cooling your home needs.

• Manual S: Picks the right equipment to meet that specific need.

• Manual D: Designs the duct system to deliver the conditioned air perfectly.

Following this complete process ensures you're investing in a total comfort system, not just an appliance. Given the importance of getting this right, it's wise to plan for the investment. You can learn about the different HVAC financing options and ways to save on your new system to make it more manageable. Insisting that your contractor uses this three-step method is the single best way to guarantee your new system delivers the comfort and efficiency you're paying for.

Of course. Here is the rewritten section, crafted to sound human-written, natural, and expert-driven, following all your specific requirements.

---

Still Have Questions About HVAC Sizing?

Even after getting a handle on the process, it’s completely normal for a few final questions to pop up when sizing an HVAC system. Getting these last details right is what separates a confident decision from a costly mistake. It’s also how you can tell you’re working with a true professional who sticks to industry best practices.

We’ve pulled together some of the most common questions we hear from homeowners. The goal is to give you clear, direct answers so you can wrap up the sizing process knowing you've covered all the important bases.

Can I Just Use an Online BTU Calculator?

It's definitely tempting to plug your home's details into a free online BTU calculator, but honestly, they’re no substitute for a professional Manual J calculation. These tools might give you a rough ballpark figure, but they are fundamentally flawed for making a real-world purchasing decision.

Why? Most online calculators rely on just a few simple data points—usually just your home's total square footage and maybe a general climate zone. They completely miss the details that make your home unique, such as:

• The actual R-values of the insulation in your walls and attic.

• The efficiency and orientation of your windows (a south-facing wall of glass is very different from a small, north-facing window).

• Air leakage rates, ideally measured with a professional blower door test.

• The specific heat your family and appliances add to the home.

Trusting one of these tools often leads to the exact same oversizing problems we see with outdated rules of thumb. Think of an online calculator as a fun starting point for your own curiosity, but never, ever use its results to choose a new system.

Does Sizing Matter as Much with a Modern Variable-Speed Unit?

This is a great question. It’s true that today’s variable-speed and multi-stage systems are much more forgiving of slight oversizing than old-school, single-stage units. Their ability to run at lower capacities for long periods means they deliver far better dehumidification and operate more efficiently across a wider range of weather conditions.

However, this amazing technology doesn't make proper sizing obsolete. Not at all.

Grossly oversizing even the most advanced variable-speed unit is still a waste of money upfront. More importantly, it can prevent the system from ever settling into its most efficient, energy-sipping low stages, which defeats a big part of the reason you paid for that advanced tech in the first place.

A precise Manual J calculation is still the essential first step. It should be followed by a Manual S report to select the specific variable-capacity model that perfectly matches your home's unique heating and cooling needs.

A contractor who relies on square footage rules or just suggests replacing your old unit with the same size is waving a major red flag. This is not how professionals operate.

Your home’s energy needs can change dramatically over the years. You might have done renovations, put in new windows, or the old insulation might have settled. Plus, let's be honest, the original unit could have been sized incorrectly from day one. A contractor's refusal to perform and share a complete Manual J report is a strong sign they’re cutting corners. We strongly advise getting bids from other professionals who make a comprehensive load calculation a standard part of their process.

---

When it comes to something as crucial as your home's comfort and air quality, you deserve an expert who relies on data, not guesswork. The team at Covenant Aire Solutions makes professional Manual J load calculations a standard part of every new system installation. Contact us today to schedule a consultation and ensure your new HVAC system is sized perfectly for your home.
