Your 2025 HVAC Install Checklist: 7 Essential Steps

A new HVAC system represents a significant investment in your property's comfort and energy efficiency. However, the quality of the installation is just as critical as the quality of the unit itself. A poorly executed installation can lead to years of high energy bills, frequent breakdowns, and inconsistent temperatures, turning a major upgrade into a major headache. For homeowners and property managers in areas like Tucson, where reliable climate control is essential, getting this process right is non-negotiable.

This comprehensive hvac install checklist breaks down the seven crucial stages that separate a professional job from a costly mistake. Understanding these steps empowers you to ask the right questions, verify the work, and ensure your project is completed to the highest standard. From performing an accurate load calculation to the final system commissioning, each item on this list is a critical checkpoint. We will cover the specific, actionable details you need to know, helping you safeguard your investment and guarantee dependable comfort for years to come. This guide provides the clarity needed to oversee your HVAC installation with confidence, ensuring you receive the performance and efficiency you paid for.

1. Load Calculation and System Sizing

The absolute cornerstone of any successful HVAC installation is a professional load calculation, often referred to as a Manual J calculation. This isn't a simple guess based on square footage; it's a comprehensive engineering analysis that determines the precise heating and cooling needs of your specific property. Skipping this step is a primary reason for system inefficiency, discomfort, and premature equipment failure, making it a non-negotiable part of a proper HVAC install checklist.

An oversized system will short-cycle, turning on and off frequently. This wastes energy, creates uneven temperatures, and fails to adequately dehumidify the air. Conversely, an undersized system will run constantly without ever reaching the desired temperature, leading to excessive wear and high utility bills.

Why It's Crucial

A meticulous load calculation ensures your new system is perfectly matched to your home's unique thermal characteristics. This analysis accounts for dozens of variables, including:

• Building Envelope: Insulation levels in walls and attics, window efficiency and orientation (e.g., south-facing windows introduce more heat), and air leakage rates.

• Internal Gains: Heat generated by occupants, lighting, and appliances.

• Climate Data: Local weather patterns, including peak summer and winter temperatures specific to your region.

For instance, a well-insulated modern home in Tucson might require a smaller, more efficient 2.5-ton unit, whereas an older home of the same size with original windows might need a 3.5-ton system to achieve comfort. For a deeper dive into the specifics, you can learn more about calculating HVAC size for your home.

The Load Calculation Process

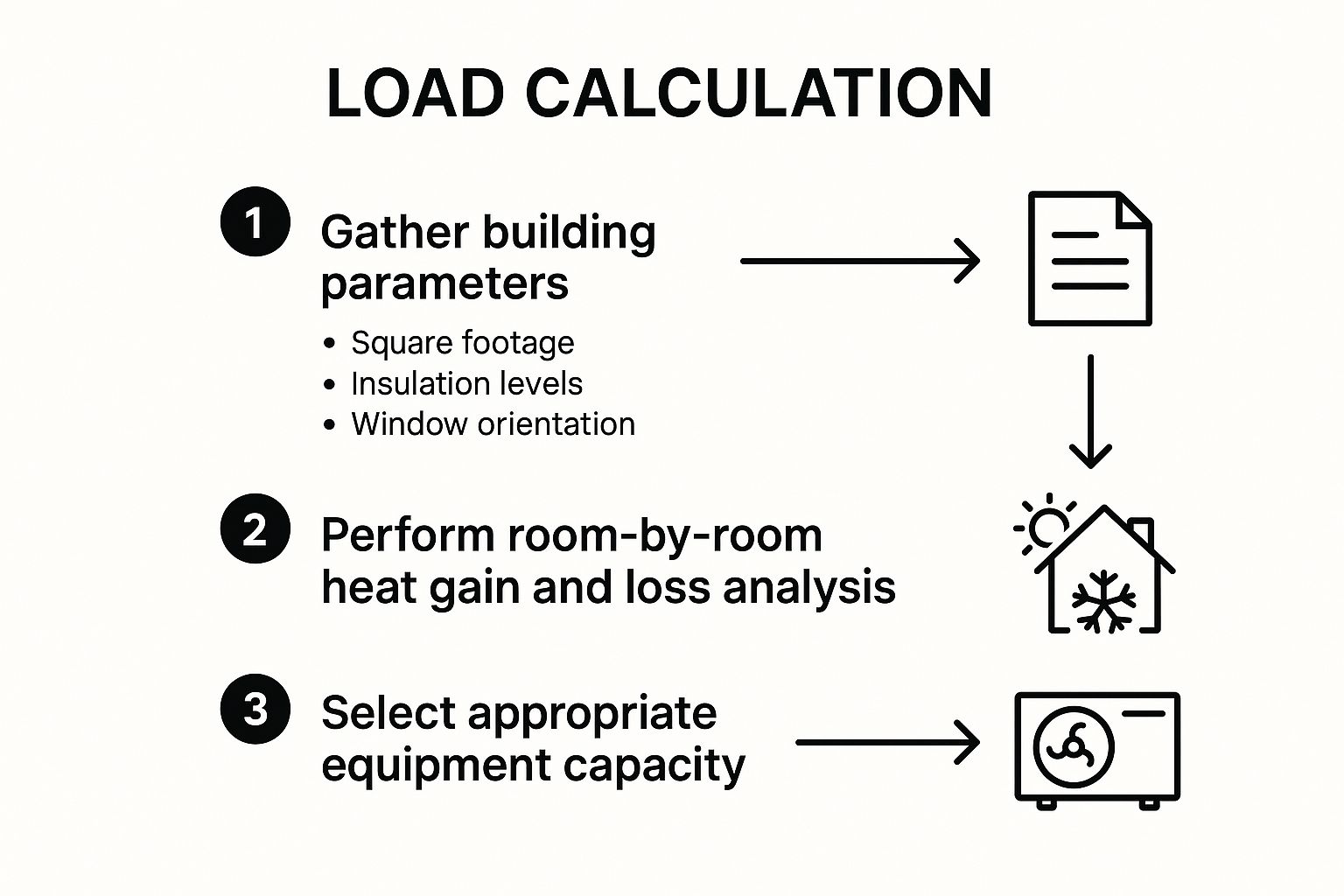

The infographic below illustrates the streamlined, three-step process contractors use to ensure accurate system sizing.

This methodical flow ensures that the final equipment choice is based on hard data, not assumptions, leading to optimal performance and energy efficiency. Always insist that your contractor provides a documented Manual J report before finalizing equipment.

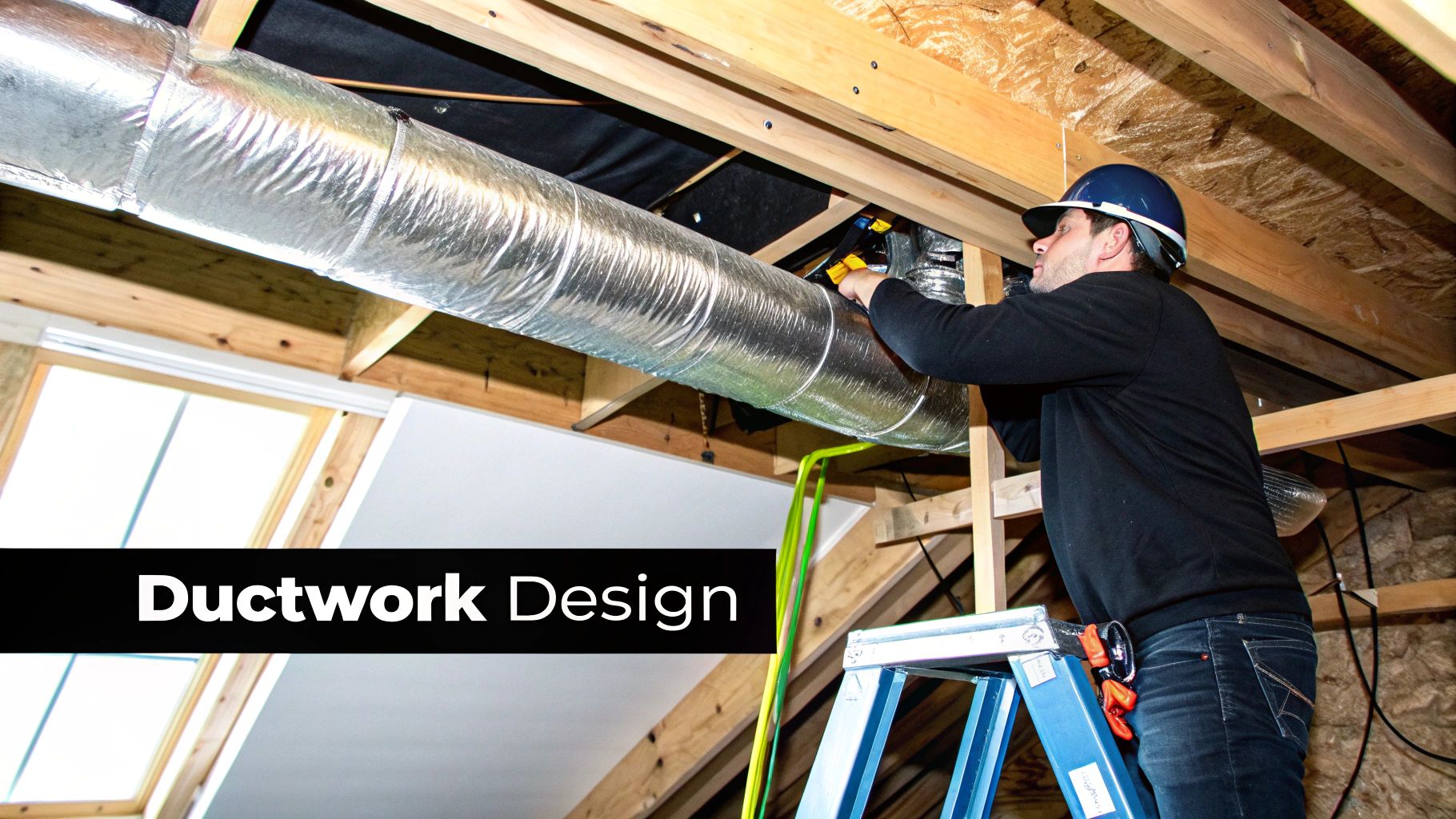

2. Ductwork Design and Installation

If the HVAC unit is the heart of the system, the ductwork is the circulatory system. Proper ductwork design and installation are just as critical as system sizing for ensuring conditioned air is delivered efficiently and quietly throughout your property. This vital component of any hvac install checklist involves far more than simply connecting flexible tubes; it’s a science governed by principles of airflow, pressure, and thermal dynamics, often guided by ACCA's Manual D standards.

Poorly designed or installed ductwork can lead to hot and cold spots, noisy operation, and significant energy loss. Leaky or uninsulated ducts, especially in unconditioned spaces like attics or crawlspaces, can waste up to 30% of the energy used for heating and cooling, forcing your system to work harder and driving up utility bills.

Why It's Crucial

A professionally designed duct system ensures balanced airflow, delivering the correct volume of conditioned air to each room based on its specific needs determined by the load calculation. This prevents situations where one room is freezing while another is uncomfortably warm. Meticulous installation is key to system longevity and efficiency.

Key considerations for a high-performance duct system include:

• Proper Sizing: Ducts must be sized correctly. Ducts that are too small can restrict airflow, creating high static pressure and noise, while ducts that are too large can lead to low air velocity and poor delivery to distant rooms.

• Sealing and Insulation: Every joint, seam, and connection must be sealed with mastic or UL-181 approved tape. Insulating ducts in unconditioned areas prevents thermal loss and condensation.

• Layout and Support: The layout should utilize straight runs as much as possible, with gentle turns to minimize airflow resistance. Ducts must be properly supported every 4-6 feet to prevent sagging, which can create blockages and inefficiencies over time.

For instance, a residential trunk-and-branch design requires careful planning of the main trunk line and the individual branch ducts to ensure balanced distribution. Verifying that the ductwork is clean and free of debris is also essential for both airflow and air quality. For more on this, you can explore the benefits of professional air duct services.

The Installation Verification Process

Ensuring the integrity of your new ductwork involves more than a quick visual check. A professional contractor will follow a verification process to guarantee performance. This includes pressure testing the system to measure air leakage. A "duct blaster" test can precisely quantify how much air is escaping, confirming that the sealing work meets industry standards. This step transforms your ductwork from a potential point of failure into a highly efficient air delivery network, maximizing your comfort and minimizing energy waste.

3. Electrical Connections and Safety

Beyond the physical placement of the unit, the proper installation of electrical components is a critical part of any HVAC install checklist. This involves connecting the power supply, control wiring, and all safety mechanisms according to strict codes and manufacturer specifications. Proper electrical work is paramount not just for the system to function, but for the safety of your property and its occupants. Mistakes here can lead to equipment damage, fire hazards, and unreliable performance.

An HVAC system is a powerful piece of equipment that requires dedicated, properly sized circuits. The high-voltage connections power the compressor and fans, while low-voltage wiring manages the thermostat and control board communications. A professional installation ensures these two systems are correctly separated and securely connected, preventing electrical shorts and premature component failure.

Why It's Crucial

Correctly wired electrical systems are the foundation of a safe and reliable HVAC unit. This process is governed by the National Electrical Code (NEC) to prevent electrical hazards and ensure long-term operational integrity. A meticulous electrician or HVAC technician will focus on:

• Code Compliance: Ensuring all wiring, conduit, and disconnects meet local and national safety standards, including proper grounding to prevent electrical shock.

• Component Protection: Installing correctly sized breakers and fuses to protect the unit from power surges and short circuits. This also includes installing a service disconnect near the unit for safe maintenance.

• System Communication: Guaranteeing that low-voltage thermostat wiring is correctly installed and connected, allowing for precise temperature control and system diagnostics.

For example, a central air conditioner requires a dedicated 240V circuit, not just a connection to any available power source. Similarly, the emergency disconnect for a rooftop unit must be easily accessible to service technicians. For more ways to optimize your system's efficiency and reduce operational costs, you can explore real strategies that cut heating and cooling expenses.

Key Electrical Safety Checks

To ensure a safe and durable installation, your contractor should perform several key electrical verifications. These checks are non-negotiable and confirm that the system is ready to be energized without risk.

A thorough electrical setup process involves:

1. Verifying Circuit Integrity: Confirming the dedicated circuit is correctly sized for the new unit's amperage draw.

2. Installing Safety Disconnects: Placing a disconnect switch within sight of both the indoor and outdoor units.

3. Securing and Labeling Wires: Neatly running and securing all wiring and clearly labeling the new circuit at the main electrical panel.

4. Testing All Connections: After installation, testing all connections for proper voltage and continuity before fully energizing the system.

Always insist that the installer follows the manufacturer's wiring diagram exactly. This attention to detail protects your investment and ensures your new HVAC system operates safely and efficiently for years to come.

4. Refrigerant Line Installation and Testing

The refrigerant lines, often called a line set, are the circulatory system of your split HVAC unit. These copper tubes are the critical pathway that moves refrigerant between the indoor and outdoor components, facilitating the heat transfer process. A flawless installation of these lines is absolutely essential for system efficiency, reliability, and longevity, making it a pivotal check on any comprehensive hvac install checklist.

Improper line set installation can lead to a host of problems, including refrigerant leaks, reduced cooling capacity, and catastrophic compressor failure. Issues like incorrect sizing, poor brazing techniques, or failing to properly insulate the lines can cripple a brand-new system from day one.

Why It's Crucial

Correct refrigerant line work ensures the system operates at the efficiency rating specified by the manufacturer. It protects the most expensive component, the compressor, from damage due to oil return issues or refrigerant contamination. A clean, dry, and leak-free refrigerant circuit is the hallmark of a professional installation.

This process involves several key steps:

• Proper Sizing: The diameter of the liquid and suction lines must match the manufacturer's specifications for the unit's tonnage and the length of the line set. For instance, a typical 3-ton system might require a 3/8-inch liquid line and a 7/8-inch suction line.

• Brazing with Nitrogen: When connecting copper pipes, a nitrogen purge must be used. This prevents the formation of scale and oxidation inside the pipes, which can contaminate the system and clog vital components.

• Insulation: The larger suction line must be fully insulated to prevent condensation ("sweating") and to ensure cool refrigerant gas returns to the compressor, which is vital for its operation.

The Installation and Testing Process

Professional technicians follow a meticulous, multi-stage process for the line set, as outlined by standards from organizations like the Refrigeration Service Engineers Society (RSES). The key is to create a closed loop that is clean, dry, and leak-proof before refrigerant is introduced. This involves a pressure test with dry nitrogen to check for leaks, followed by a deep vacuum using a micron gauge to remove all air and moisture. A vacuum level below 500 microns confirms the system is moisture-free and ready for charging. Insisting on seeing the micron gauge reading is a great way for a homeowner to verify a quality installation.

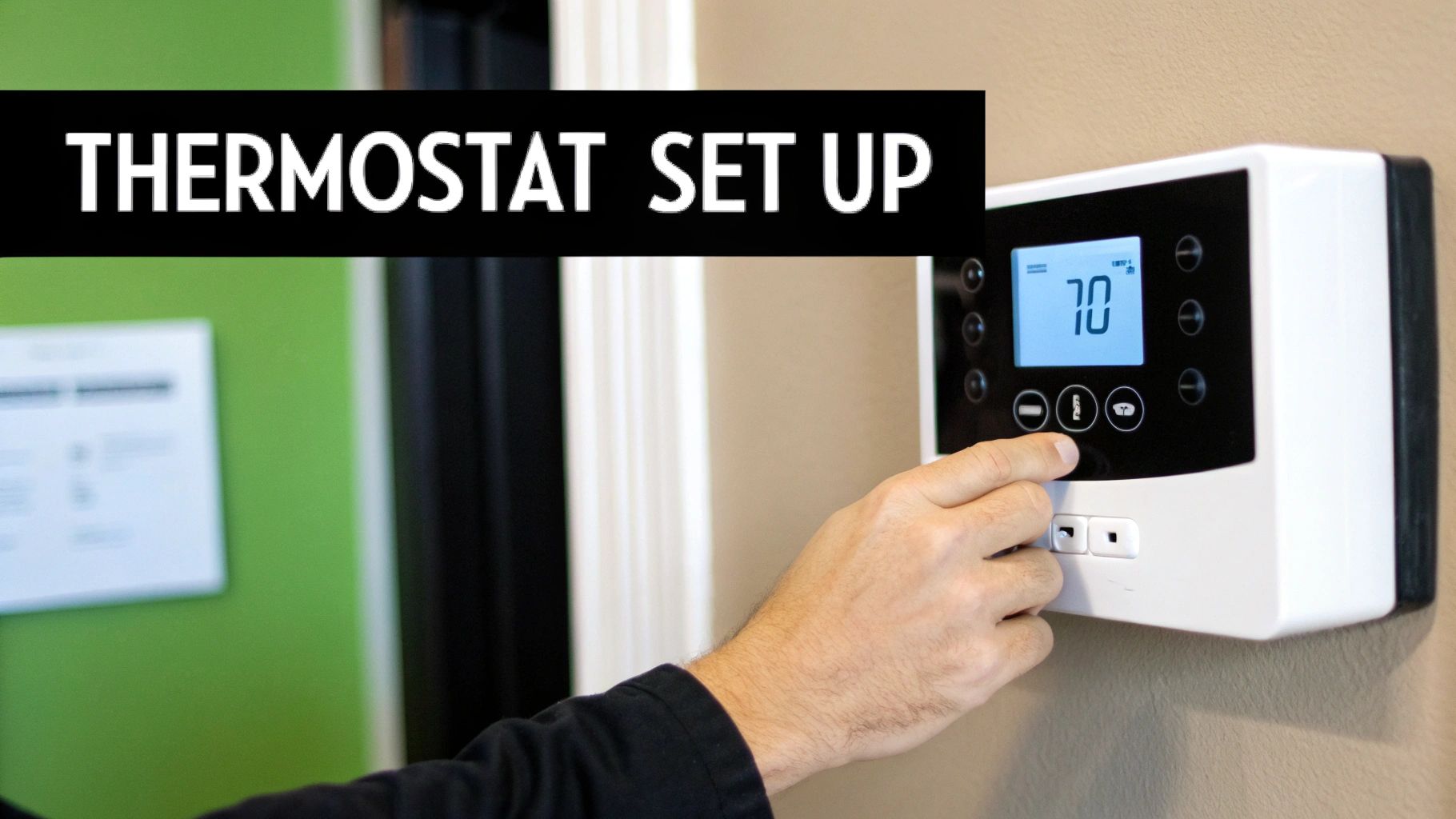

5. Thermostat and Control System Setup

The thermostat is the primary interface for your entire comfort system, acting as the brain that tells your HVAC equipment when to turn on and off. A modern thermostat installation is far more than just connecting a few wires; it involves strategic placement, precise calibration, and intelligent programming to maximize both comfort and energy efficiency. A poorly placed or improperly configured thermostat can negate the benefits of a high-efficiency system, making this a critical checkpoint on any professional HVAC install checklist.

An incorrectly installed thermostat may get false readings, causing the system to run too often or not enough. For example, a thermostat placed in direct sunlight will think the room is warmer than it is, shutting off the AC prematurely. Conversely, one placed near an exterior door might sense a draft and run the heat unnecessarily. Proper setup ensures the system responds accurately to the actual conditions of your living space.

Why It's Crucial

Correct thermostat installation and programming are essential for unlocking the full potential of your new HVAC unit. It directly impacts your day-to-day comfort and long-term utility costs. A professional setup ensures:

• Accurate Temperature Sensing: The thermostat is placed in a central location, away from anything that could skew its readings, like lamps, vents, or drafty windows.

• Optimal System Performance: The thermostat is correctly wired and configured to control all functions of your system, including multi-stage heating, cooling, and fan speeds.

• Energy Savings: Programming schedules and setback temperatures leverage smart technology to reduce energy use when you're away or asleep, which can lower utility bills significantly.

For instance, a homeowner with an Ecobee SmartThermostat can use room sensors to prioritize comfort in occupied spaces, like a home office during the day and the bedroom at night. This targeted control prevents wasted energy on heating or cooling empty rooms.

The Thermostat Setup Process

Proper installation is a multi-step process that guarantees the device functions as the central command for your home’s climate. A meticulous technician will always:

1. Select the Right Location: Mount the thermostat on an interior wall, about 52 to 60 inches from the floor, in a high-traffic area.

2. Ensure Correct Wiring: Securely connect all wires to the appropriate terminals to control heating, cooling, and fan functions. This includes checking for a "C-wire" to provide continuous power for smart thermostats.

3. Program and Calibrate: Configure schedules, test all heating and cooling stages, and ensure temperature readings are accurate.

4. Provide Homeowner Training: Walk the user through basic operations, including how to set schedules, use away modes, and interpret alerts on models like the Nest Learning Thermostat.

6. Drainage and Condensate Management

A crucial, yet often overlooked, component of a professional HVAC install checklist is the proper management of condensate. As your air conditioner cools the air, it removes humidity, which collects as water. This water must be safely and effectively drained away from the unit and your home. Improper condensate management can lead to significant water damage, mold growth, and system shutdowns, making it a critical aspect of a reliable installation.

Failing to properly install a drainage system is a recipe for disaster. A clogged or improperly sloped drain line can cause water to back up into the air handler, overflowing the pan and potentially leaking through ceilings and walls. This not only creates costly repairs but also introduces excess moisture, which can compromise your home's structure and indoor air quality.

Why It's Crucial

Effective condensate management protects your property and ensures the longevity of your HVAC system. A well-designed system prevents water-related issues before they start. Key considerations include:

• Preventing Water Damage: A primary drain line, a secondary drain pan, and an overflow shut-off switch work together as a triple-redundancy system to prevent leaks.

• Maintaining Air Quality: Standing water in drain pans or lines is a breeding ground for algae, bacteria, and mold. Proper drainage eliminates this risk, protecting your family's health.

• Ensuring System Operation: Many modern systems have safety switches that shut off the unit if the drain line clogs. While this prevents a flood, a properly installed drain minimizes these nuisance shutdowns.

For example, an air handler installed in an attic must have a secondary drain pan with a float switch to prevent a catastrophic ceiling leak. In a basement, a gravity drain might be sufficient if a floor drain is available, but it must still be installed with the correct slope. For a comprehensive look at how moisture affects your home, you can learn more about controlling humidity for a healthier home.

Actionable Tips for Proper Drainage

To ensure your system's drainage is handled correctly, verify your contractor follows these best practices:

• Proper Slope: The primary drain line must have a consistent downward slope of at least 1/4 inch per foot to ensure water flows out via gravity.

• Cleanout Access: An accessible cleanout tee should be installed on the drain line, allowing for easy flushing and maintenance to prevent blockages.

• Overflow Protection: Always insist on the installation of a secondary drain pan (for attic/closet units) and a float switch that will turn the system off if a clog is detected.

• Trap Installation: A P-trap should be installed near the air handler to prevent air from being pulled back into the unit, which can stop the drain from flowing correctly.

By paying close attention to these drainage details, you are investing in the long-term protection of both your home and your new HVAC equipment.

7. System Commissioning and Testing

The final, critical phase of any professional HVAC installation is system commissioning and testing. This is far more than simply flipping a switch to see if it turns on. Commissioning is a meticulous, systematic process of verifying that every component of the new system operates precisely according to the manufacturer's specifications and the initial design plan. It is the ultimate quality control check that ensures safety, efficiency, and comfort, making it an indispensable step on any comprehensive HVAC install checklist.

An uncommissioned system, even if properly sized and installed, may not perform optimally. Incorrect refrigerant levels, improper airflow, or miscalibrated controls can lead to higher energy bills, reduced comfort, and a significantly shorter equipment lifespan. Proper commissioning confirms that you are getting the full performance and efficiency you paid for.

Why It's Crucial

Thorough testing and commissioning bridge the gap between installation and operation, guaranteeing every part works in harmony. This verification process is vital for long-term reliability and performance. Key aspects checked include:

• Performance Verification: Ensuring the system delivers the specified heating and cooling capacity and achieves proper airflow rates (e.g., a residential system achieving the target 400 CFM per ton).

• Safety Controls: Testing all safety mechanisms, like high-limit switches and pressure sensors, to confirm they function correctly and protect the equipment and your property.

• Operational Sequence: Verifying that the thermostat, dampers, and unit components communicate and operate in the correct sequence for both heating and cooling modes.

For example, a technician will use specialized tools like a digital manifold gauge and an anemometer to measure refrigerant pressures and airflow, respectively. These readings are then compared against the manufacturer’s data plate to confirm the system is "charged" and running perfectly. Without this step, a small issue could go unnoticed until it causes a major failure.

The Commissioning Process

A qualified technician will follow a detailed checklist to test and document the system's performance. This methodical approach leaves no room for error and provides a baseline for future service. The process includes:

• Static Pressure Test: Measuring the resistance to airflow within the ductwork to ensure it's within the equipment's operational range.

• Refrigerant Charge Verification: Checking the refrigerant level using multiple methods (superheat and subcooling) to ensure it is precise.

• Electrical Checks: Verifying correct voltage and amperage draws for major components like the compressor and fan motors.

• Controls and Thermostat Calibration: Ensuring the thermostat accurately reads the room temperature and properly controls the system’s cycles.

After documenting these results, the technician should provide you with a copy and walk you through the system’s operation. This handover ensures you are comfortable with the controls and understand basic maintenance needs, which are fundamental for lasting performance. To keep your system running as efficiently as it did on day one, it's essential to follow a proactive maintenance plan. You can explore a detailed guide to establish your essential HVAC maintenance schedule.

7-Point HVAC Installation Checklist Comparison

Item	Implementation Complexity 🔄	Resource Requirements ⚡	Expected Outcomes 📊	Ideal Use Cases 💡	Key Advantages ⭐
Load Calculation and System Sizing	High – requires expertise and software	Moderate – calculation tools and skilled engineer	Precise HVAC sizing for energy efficiency and comfort	New constructions, remodeling, accurate HVAC equipment sizing	Optimizes energy use, extends equipment life, reduces costs
Ductwork Design and Installation	Medium – detailed planning and physical work	High – materials, space, skilled labor	Efficient air distribution with balanced airflow	Residential and commercial buildings requiring airflow design	Improves comfort, air quality, noise reduction, energy efficient
Electrical Connections and Safety	Medium – electrical knowledge mandatory	Moderate to high – licensed electrician, materials	Safe, compliant, and reliable electrical power supply	All HVAC installations requiring electrical setup	Ensures safety, code compliance, reliable operation
Refrigerant Line Installation and Testing	High – specialized skills and equipment	High – tools, materials, certification	Leak-free, efficient refrigerant flow, system longevity	Split-system HVAC with refrigerant piping	Maintains system efficiency, prevents leaks, protects compressor
Thermostat and Control System Setup	Medium – programming and wiring complexity	Moderate – devices and installation labor	Precise control, energy savings, remote access	Smart homes, multi-zone control setups	Enhances comfort, reduces energy use, remote monitoring
Drainage and Condensate Management	Low to medium – plumbing knowledge needed	Moderate – pumps, piping, installation tools	Prevents water damage, controls humidity	Buildings with cooling systems producing condensate	Protects structure, improves air quality, low maintenance
System Commissioning and Testing	High – requires specialized testing skills	Moderate to high – tools, trained personnel	Verified system function, optimized performance	Final stages of HVAC installation and warranty validation	Ensures performance, identifies issues early, code compliance

Ensuring a Perfect Installation with a Trusted Partner

Navigating a new HVAC installation can feel overwhelming, but armed with a comprehensive hvac install checklist, you transform from a passive observer into an empowered advocate for your home or property. This guide has detailed the critical pillars of a successful installation, moving far beyond simply plugging in a new unit. We have dissected the essential, non-negotiable steps that separate a rushed job from a high-performance system built to last.

From the foundational precision of the Manual J load calculation to the meticulous final checks during system commissioning, each stage is interconnected. A correctly sized unit is only as good as the ductwork that distributes its air. Flawless electrical connections and safely installed refrigerant lines are paramount for both performance and safety. Likewise, proper condensate drainage prevents water damage, while a correctly configured thermostat ensures you can actually access the efficiency you paid for.

From Checklist to Confidence

Understanding these elements is the first step. The true value of this checklist emerges when you use it to vet and communicate with your chosen HVAC contractor. It provides you with the vocabulary and knowledge to ask intelligent questions, understand the answers, and recognize the hallmarks of quality workmanship. This is not about micromanaging a certified technician; it is about establishing a partnership built on transparency and shared goals.

The ultimate takeaway is that a quality installation is an investment, not just an expense. It directly impacts:

• Your monthly energy bills: A system installed to precise specifications operates at peak efficiency, minimizing energy waste and saving you money year after year.

• Your indoor comfort: Proper sizing and airflow design eliminate hot and cold spots, providing consistent, reliable comfort throughout your space.

• The system's lifespan: Correct installation techniques reduce strain on components, preventing premature breakdowns and extending the longevity of your equipment.

• Your peace of mind: Knowing every detail, from the electrical grounding to the refrigerant charge, was handled correctly provides confidence that your system is safe, reliable, and effective.

For homeowners and property managers in Tucson and the surrounding Arizona areas, the extreme climate makes these details even more critical. A subpar installation won’t just be inefficient; it will fail when you need it most. By following this hvac install checklist, you are not just buying a piece of equipment; you are securing a reliable, long-term solution for your comfort and well-being. Your diligence in selecting a trusted partner who respects these technical standards is the final, and most important, item on the list.

---
