It’s a common misconception that air conditioners work by creating cold air out of thin air. The reality is much cooler, pun intended. A mini split AC system actually works by moving heat.
Think of it like a sponge. It uses a special chemical called a refrigerant to soak up the heat from inside a room and then "squeezes" it out somewhere else, in this case, outside. This whole process hinges on two key players: the indoor unit, which pulls in your warm air, and the outdoor unit, which kicks that heat to the curb.
Your Quick Guide to Mini Split AC Systems
If you've ever looked at one of those sleek, quiet boxes on a wall and wondered how it cools a room so well without any ductwork, you're in the right place. Mini splits offer an incredibly straightforward and efficient way to control the climate in your home, and they're quickly becoming a go-to solution for homeowners everywhere.
A huge part of their appeal is that ductless design. It’s a game-changer for apartments, older homes, or any space where installing traditional ducts just isn’t practical. The market numbers tell the story: the U.S. market for these systems was valued at USD 1.4 billion in 2024 and is on track to hit USD 2.4 billion by 2034.
That’s some serious growth, and it’s being driven by people who want flexible, energy-saving cooling. You can get more details on the mini split market trends over on gminsights.com.
To help you get a quick handle on the hardware, here’s a simple breakdown of what’s what in a mini split system.
Mini Split System At a Glance
Component | Location | Primary Function |
|---|---|---|
Indoor Unit (Air Handler) | Mounted inside on a wall or ceiling | Pulls in warm room air, cools it, and circulates it back out. |
Outdoor Unit (Condenser/Compressor) | Placed outside the home | Receives heat from the refrigerant and releases it into the outdoor air. |
Refrigerant Lines (Line Set) | Connects the indoor and outdoor units | A set of copper tubes that carry the refrigerant back and forth. |
Refrigerant | Circulates within the system | The "magic" liquid/gas that absorbs and releases heat. |
This table gives you the basics, but the real secret to how it all works together is something called heat transfer.
The Core Concept of Heat Transfer
At its heart, a mini split is really a heat pump. It’s not making cold; it’s just moving heat from where you don't want it to where it doesn't matter.
During a blistering Arizona summer, it performs a simple, three-step dance:
Absorbs Heat: The indoor unit sucks in the warm, stuffy air from your living room.
Transfers Heat: That heat gets absorbed by the refrigerant, which then travels through copper lines to the outdoor unit.
Releases Heat: The outdoor unit takes that heat and dumps it into the outside air.
The real magic is in the refrigerant, which continuously cycles between a liquid and a gas. This phase change is what allows it to efficiently absorb and release large amounts of thermal energy.
This simple principle is what makes mini splits such a powerful and efficient alternative to bulky central air systems that rely on a network of ducts. Understanding the key differences is crucial for any homeowner, which is why we put together a detailed guide on ductless vs. central air for Arizona homes.
Once you break down the process, it’s easy to see how this technology delivers targeted, efficient comfort exactly where you need it most.
The Two Key Players: Indoor and Outdoor Units
To really get how a mini-split AC system works, you have to get to know its two main components. Think of them as a dynamic duo working in perfect sync, one partner works outside, while the other handles things inside. This split-system design is the secret behind its whisper-quiet operation and duct-free efficiency.
The first member of this team is the outdoor unit, which you'll often hear called the condenser. This is the workhorse of the entire system, containing the most critical (and loudest) mechanical parts. Its main job is to dump all the unwanted heat that was pulled from inside your home.
This outdoor unit is usually placed on a small concrete slab or mounted on a bracket against an exterior wall. It’s built tough to handle the elements, including that intense Arizona sun, while it works tirelessly to keep you cool.
The Outdoor Unit: The Heat Release Station
Inside that outdoor unit, you'll find two essential parts working together: the compressor and the condenser coil. The compressor is like the heart of the system; it pumps refrigerant through the lines and puts it under serious pressure. This process cranks up the refrigerant's temperature, getting it ready to release its stored heat.
From there, the hot, high-pressure refrigerant gas flows into the condenser coil. A large fan blows the outside air across these coils, pulling the heat away from the refrigerant and sending it out into the atmosphere. You can actually feel this warm air blowing from the unit when it’s running.
This is the fundamental exchange: the heat from your living room is literally being dumped outside. The refrigerant, having released its heat, then condenses back into a liquid, ready to travel back inside and absorb more warmth.
This constant, efficient cycle of heat transfer is what makes mini-splits so effective. And by keeping the noisy compressor and fan outside, the system keeps your indoor space peacefully quiet.
The Indoor Unit: The Cooling Source
The second key player is the indoor unit, also known as the air handler. This is the sleek, wall-mounted unit you actually see inside the room. Its job is the exact opposite of the outdoor unit: it’s designed to absorb heat from the indoor air.
Inside this unit are the evaporator coil and a quiet fan. The now-cool liquid refrigerant from the outdoor unit flows into this evaporator coil. As the indoor fan pulls warm room air across this frigid coil, the heat is soaked up by the refrigerant, causing it to boil and turn back into a gas.
The freshly chilled air is then gently blown back into the room, creating that comfortable environment you're looking for. The size of the indoor unit is critical, as it needs to match the cooling demands of the space. To learn more about this, check out our detailed guide on how to size an air conditioner for your home.
The Conduit Connection
So, how do these two units talk to each other? They’re connected by a small bundle of lines and wires called a conduit or line set. This conduit contains:
Refrigerant Lines: Two copper tubes that carry the refrigerant back and forth.
Power Cable: Provides the electricity to run the indoor unit.
Condensate Drain: A small line to remove moisture collected from the humid indoor air.
This little bundle only requires a three-inch hole in the wall, which makes installation far less invasive than trying to fit bulky ductwork. It's this simple, direct connection that gives the mini-split its name and its incredible flexibility.
The Refrigeration Cycle: The Magic Behind the Cool Air
The real secret to how a mini-split works isn't just about fans and vents. The true magic happens inside the copper lines connecting the indoor and outdoor units. It’s a process called the refrigeration cycle, a continuous loop where a special substance, the refrigerant, changes from liquid to gas and back again, all to move heat.
Think of it like the water cycle, but instead of moving moisture, it’s expertly grabbing thermal energy from your living room and kicking it outside. This cycle is the engine that drives your entire cooling system. Without it, your AC would just be a couple of fans blowing air around. Understanding this four-step journey is the key to grasping how that refreshing, cool breeze is created on a scorching Arizona day.

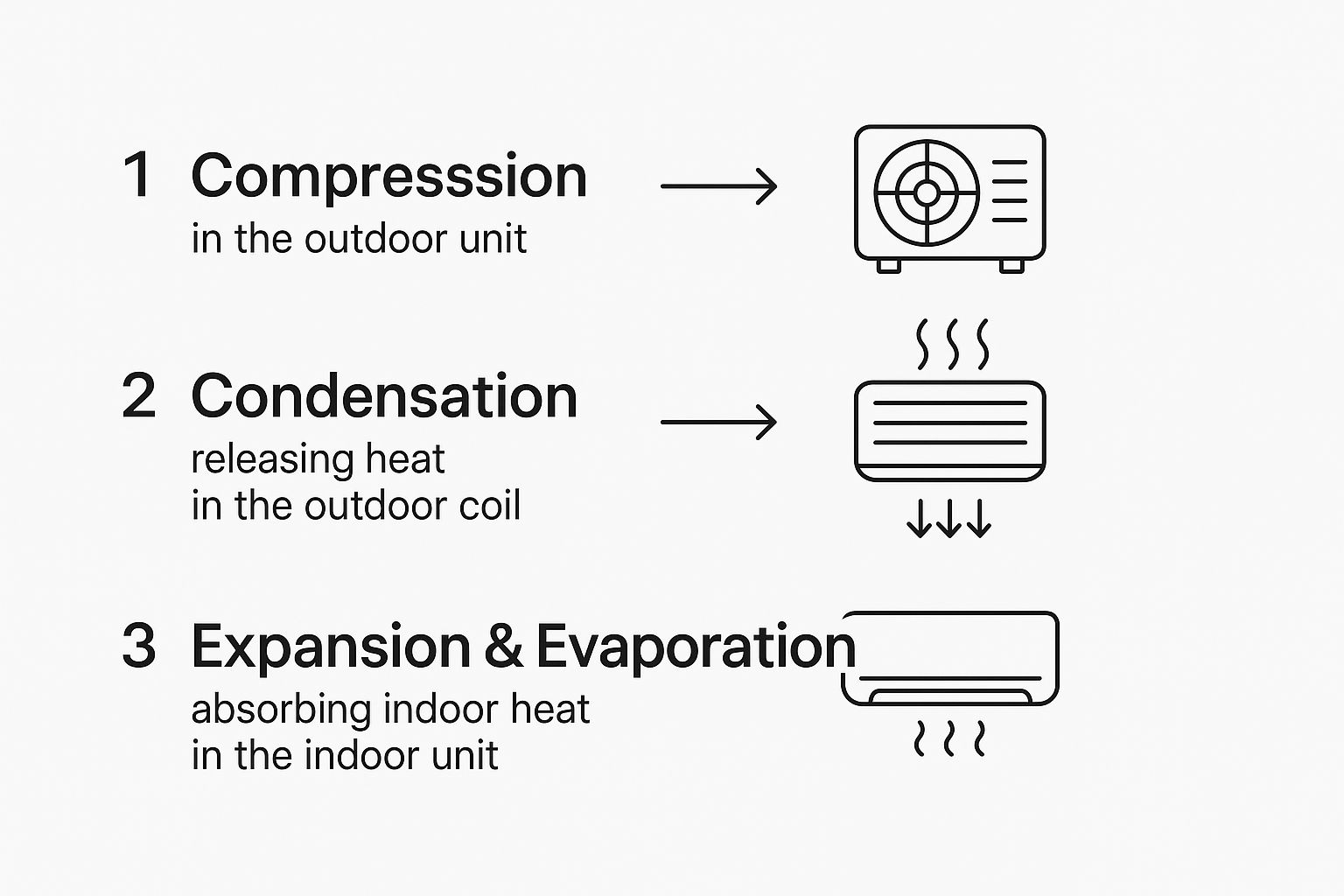

The image below shows the three most critical phases of this process, illustrating how the refrigerant transforms as it travels between the indoor and outdoor units.
This visual highlights the continuous flow: heat is absorbed inside your home and released outside, all powered by the refrigerant changing its state.
Step 1: Compression — The Pressure Cooker
The whole process kicks off in the outdoor unit with the compressor. After the refrigerant has soaked up heat from your home and turned into a low-pressure gas, it gets sent straight to the compressor. This component acts like a powerful pump, squeezing the gas molecules together under intense pressure.
This compression cranks up the refrigerant's temperature and pressure, turning it into a hot, high-pressure gas. Now, it's primed and ready to dump all that heat it just collected from inside your house.
Step 2: Condensation — Releasing Indoor Heat
Next, that superheated gas flows into the condenser coils, which are also part of the outdoor unit. A large fan blows the surrounding ambient air across these coils, allowing the heat from the refrigerant to radiate out into the atmosphere. If you've ever stood near an outdoor AC unit while it's running, that warm air you feel is this process in action.
As it sheds its heat, the refrigerant cools down and condenses back into a high-pressure liquid. It's this phase change, from gas to liquid, where the real heat transfer happens, a critical function performed by the system's heat exchanger. For a deeper look at this amazing component, check out our guide on what a heat exchanger is and how it works.
Step 3: Expansion — The Big Chill
Now a high-pressure liquid, the refrigerant travels through the lines toward an expansion valve right before it enters the indoor unit. This tiny valve is a game-changer. It acts as a bottleneck, causing a sudden and dramatic drop in pressure as the refrigerant is forced through it.
This rapid depressurization makes the liquid refrigerant intensely cold, much, much colder than the air in your room. It is now perfectly prepared for its main job: absorbing your home's indoor heat.
Step 4: Evaporation — Soaking Up the Warmth
Finally, this super-cold, low-pressure liquid enters the evaporator coil inside your indoor air handler. The room's fan blows warm indoor air across these frigid coils. Because the refrigerant has a very low boiling point, it quickly absorbs the heat from the air.
This heat absorption causes the refrigerant to boil and evaporate, turning it back into a low-pressure gas. The air that was just blown over the coil, now stripped of its heat, is sent back into the room as that cool, refreshing air you're looking for. The refrigerant, now a gas again and carrying all that unwanted heat, travels back to the outdoor unit to start the whole cycle over.
How Mini Splits Deliver Zoned Comfort
Imagine cooling your busy, sun-drenched living room to a crisp 72 degrees while keeping a guest room you rarely use at a more energy-conscious 78 degrees. That’s the core of zoned comfort, and it’s possible because each indoor air handler operates on its own. Every unit has its own thermostat, giving you pinpoint control over the environment in that specific room.
This is a world away from how central HVAC systems operate. With central air, you’re forced to cool the entire house to a single temperature. That means pushing conditioned air through a maze of ducts to every single room, whether you’re in it or not. The result is often wasted energy and frustratingly uneven temperatures: some rooms feel like an icebox while others are still too warm.
The Power of Multi-Zone Systems
The secret to this flexibility lies in the mini split’s modular design. You can connect several indoor units, each handling a different room or “zone,” to a single, powerful outdoor condenser. This setup is known as a multi-zone system, and it’s what makes whole-home zoned comfort a reality.
A common multi-zone configuration might look something like this:
One indoor unit for the main living area.
A separate, smaller unit for the master bedroom.
Another unit in a home office or kid’s room.
Each of these zones can be controlled independently, so you’re only using energy precisely where you need it. This is a massive leap forward for energy efficiency. You stop paying to cool empty spaces, a practice that can account for a huge chunk of a home's energy consumption.
Inverter Technology: The Smart Engine
The real genius behind a mini split’s quiet efficiency and consistent comfort is inverter technology. Think of a traditional AC compressor like a light switch: it’s either all the way on or all the way off. That constant, jarring cycle of starting and stopping devours a ton of energy and leads to noticeable temperature swings.
An inverter-driven compressor, on the other hand, works more like a dimmer switch. Instead of just shutting off, it intelligently adjusts its speed and power to perfectly match the room's cooling demand. When a room just needs a little bit of cooling to hold its temperature, the compressor slows way down, sipping electricity instead of guzzling it.
Inverter technology allows the system to run almost continuously at low, variable speeds. This not only maintains a much more stable indoor temperature but can also lead to energy savings of up to 30% compared to conventional systems.
This continuous, modulated operation is what makes mini splits so quiet you barely know they’re on. The system is always making tiny, precise adjustments, which prevents those uncomfortable hot and cold swings you get with older AC technology. It’s simply a smarter way to cool, giving you superior comfort while keeping those utility bills in check.
How Mini Splits Also Provide Heat
Lots of homeowners are surprised to find out that the same system that keeps them cool all summer can also be a powerhouse for heating in the winter. This dual-function capability is one of the biggest perks of a mini split system, making it a true year-round solution for comfort. The magic behind this is a technology called a heat pump.
Essentially, a mini split heat pump doesn't have to learn a new trick; it just reverses the one it already knows. Instead of pulling heat from inside your house and dumping it outside, the system just runs the refrigeration cycle in reverse.
Reversing the Refrigeration Cycle
When you flip your mini split into heating mode, a small but mighty component called a reversing valve changes the direction of the refrigerant flow. In an instant, the roles of the indoor and outdoor units are swapped. The outdoor unit’s coil becomes the evaporator, and the indoor unit’s coil becomes the condenser.
This means the system starts pulling in ambient heat from the outdoor air, even when it feels frigid to us. The refrigerant absorbs this thermal energy, travels to the compressor where it gets a major temperature boost, and then moves to the indoor unit. Once inside, it releases that captured heat right into your room, and a fan gently circulates the warm air.
It’s a common misconception that heat pumps create heat like a furnace or an electric space heater. Instead, they cleverly move existing heat from one place to another, which requires significantly less energy.
This process of transferring heat is what makes mini splits so incredibly efficient for heating. They often produce two to three times more heat energy than the electrical energy they consume. To see how this stacks up against other systems, check out our guide on heat pump vs. AC cost for a helpful breakdown.
Why This Matters for Energy Efficiency
The ability to both cool and heat makes mini splits a versatile and popular choice worldwide. The global market for these ductless systems is projected to grow from around USD 17.92 billion in 2025 to USD 31.31 billion by 2032. Single-zone units currently hold the largest market share at an estimated 58.7%, favored for their ability to provide targeted heating and cooling in individual rooms. This trend highlights the growing demand for flexible, efficient climate control that reduces reliance on older technologies. You can find more insights about the ductless mini splits market on coherentmarketinsights.com.
This dual-function design really boils down to a few key benefits for you:
Year-Round Convenience: You get both heating and cooling from a single, integrated system. No juggling multiple appliances.
Reduced Energy Bills: Heat pump technology is far more efficient than traditional electric resistance heating, which can seriously lower your utility costs in the winter.
Simplified Equipment: There's no need to install and maintain separate furnace and air conditioning systems. One system, one maintenance plan.
By understanding how a mini split works in both modes, you can truly appreciate its potential as an all-in-one solution for keeping your home perfectly comfortable, no matter the season.
Common Questions About How Mini Splits Work
Now that we've dug into the mechanics of how a mini split AC system works, from the refrigeration cycle to its amazing ability to deliver zoned comfort and even heat, you probably have some real-world questions. After all, knowing the science is one thing, but understanding the day-to-day realities of owning one is just as important.
This section tackles some of the most common questions we hear from homeowners. We'll cover maintenance, noise levels, and how these systems stand up to the brutal Arizona heat, giving you the confidence to decide if a ductless system is right for you.
How Often Do Mini Splits Need Maintenance?
Just like any HVAC system, mini splits need regular care to run efficiently and last for the long haul. The single most important task for a homeowner is cleaning the filters on the indoor units.
You should plan on cleaning these filters every 4 to 6 weeks, especially in our dusty Arizona environment. A clogged filter is bad news: it chokes off airflow, tanks efficiency, and puts a lot of strain on the whole system.
Beyond your filter-cleaning duties, professional maintenance is a must. We recommend having your system professionally serviced at least once a year. A technician will inspect electrical connections, deep-clean the indoor and outdoor coils, check refrigerant levels, and make sure the condensate drain is clear. This consistent upkeep doesn't just prevent breakdowns; it keeps your energy bills right where they should be. You can learn more about what a pro tune-up involves in our guide to essential AC maintenance.
A well-maintained mini split can easily last for 15 to 20 years. But neglecting simple tasks like cleaning the filter can seriously shorten its lifespan and lead to some pretty costly repairs.
Are Mini Split Systems Noisy?
One of the features people rave about most with mini splits is how incredibly quiet they are. The loudest parts of the system, the compressor and condenser fan, are tucked away in the outdoor unit. This smart design keeps all the real noise outside, leaving your indoor space totally peaceful.
The indoor air handlers are engineered for silence, often operating at sound levels as low as 19 decibels. To put that in perspective, that's quieter than a whisper or the rustling of leaves. This makes them a perfect fit for bedrooms, home offices, or any room where silence is golden. You'll likely only ever hear the gentle whoosh of air being circulated.
Can a Mini Split Handle Extreme Arizona Heat?
Absolutely, yes. Modern mini split systems are more than ready to take on the intense heat of an Arizona summer. Many of today's models are specifically designed to operate efficiently even when the temperature outside soars past 115°F.
The trick is to select a system with a high SEER (Seasonal Energy Efficiency Ratio) rating and, most importantly, to make sure it’s properly sized for the room it needs to cool.
The inverter technology we talked about earlier is the real hero here. By constantly adjusting its output, the system can hold a steady indoor temperature without working overtime, even during the most blistering part of the day. This makes mini splits not just effective but also remarkably efficient in extreme climates like ours.
