Ever wonder what's going on behind your walls and ceilings? Your home’s ductwork is a sprawling network of passages, a lot like its respiratory system. This hidden system is responsible for taking the conditioned air from your furnace or AC and delivering it to every corner of your home.
Think of it as the unsung hero of your home's climate control. When it's designed and working correctly, you barely know it's there. But this network has a massive impact on three things you definitely notice: your comfort, the quality of the air you breathe, and your monthly energy bills.
The main parts of ductwork that make this all happen are the plenums (the big distribution boxes), duct trunks (the main highways for air), branch ducts (the smaller routes to individual rooms), and registers (the vents you see on your walls or floors).

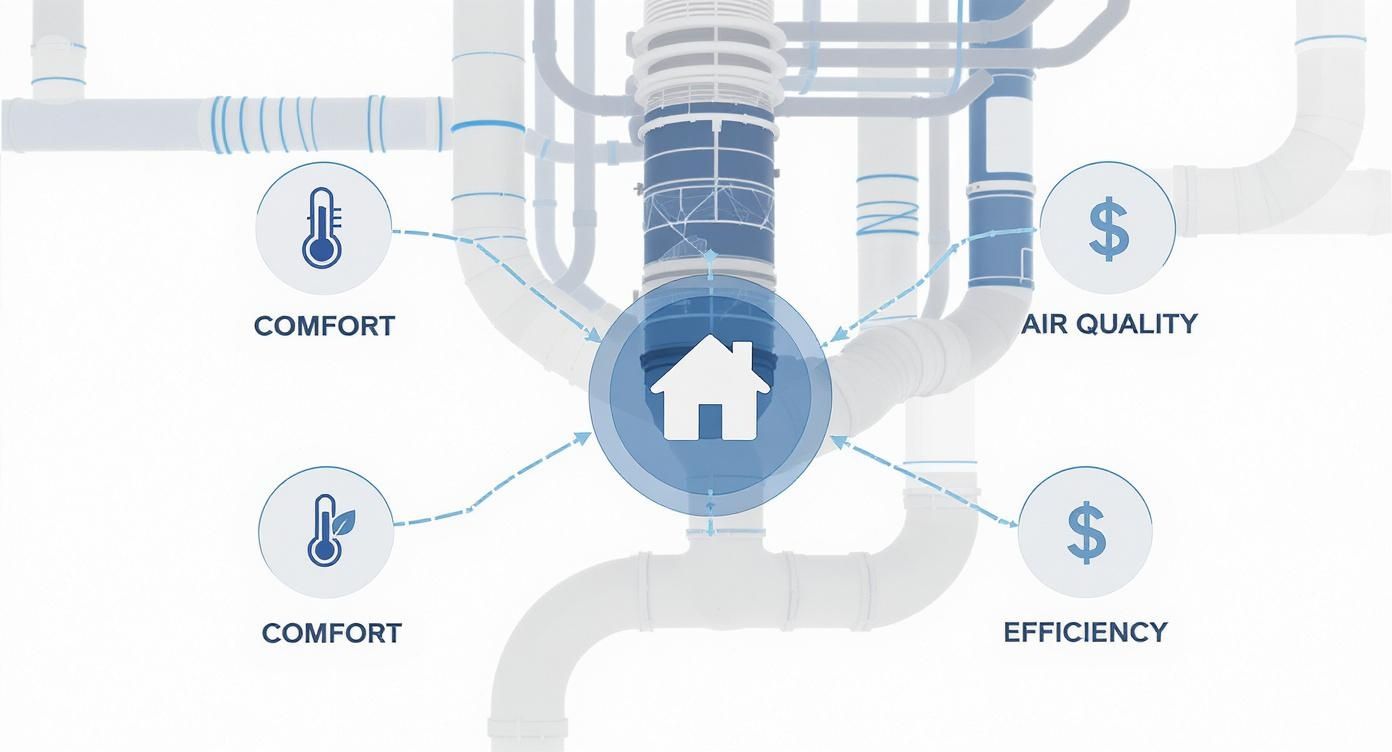

This infographic gives you a quick visual of how a healthy ductwork system connects these three crucial benefits.
As you can see, properly functioning ducts are the central hub that ties everything together. Get the ductwork right, and you get a healthier, more comfortable, and more affordable home.
Why Every Little Piece Matters
Every single component, from the largest trunk line snaking through your attic to the smallest register cover in your living room, plays a vital role. If one part fails or becomes inefficient, it creates a ripple effect that can compromise the entire system.
For example, a tiny leak in a branch duct, something you'd never see, can force your HVAC unit to run constantly just to keep up. This drives up your energy bills and leads to those frustrating hot and cold spots around the house.
A properly sealed and maintained duct system can improve HVAC efficiency by as much as 20 percent. That's a huge impact on both your comfort and your wallet, all from components that are often out of sight and out of mind.
In this guide, we're going to pull back the curtain. We'll break down all the parts of your ductwork, starting at the heart of the system and following the air's complete journey into your rooms. By the end, you'll have a clear, practical understanding of this vital network, empowering you to make smarter decisions about its care and upkeep.

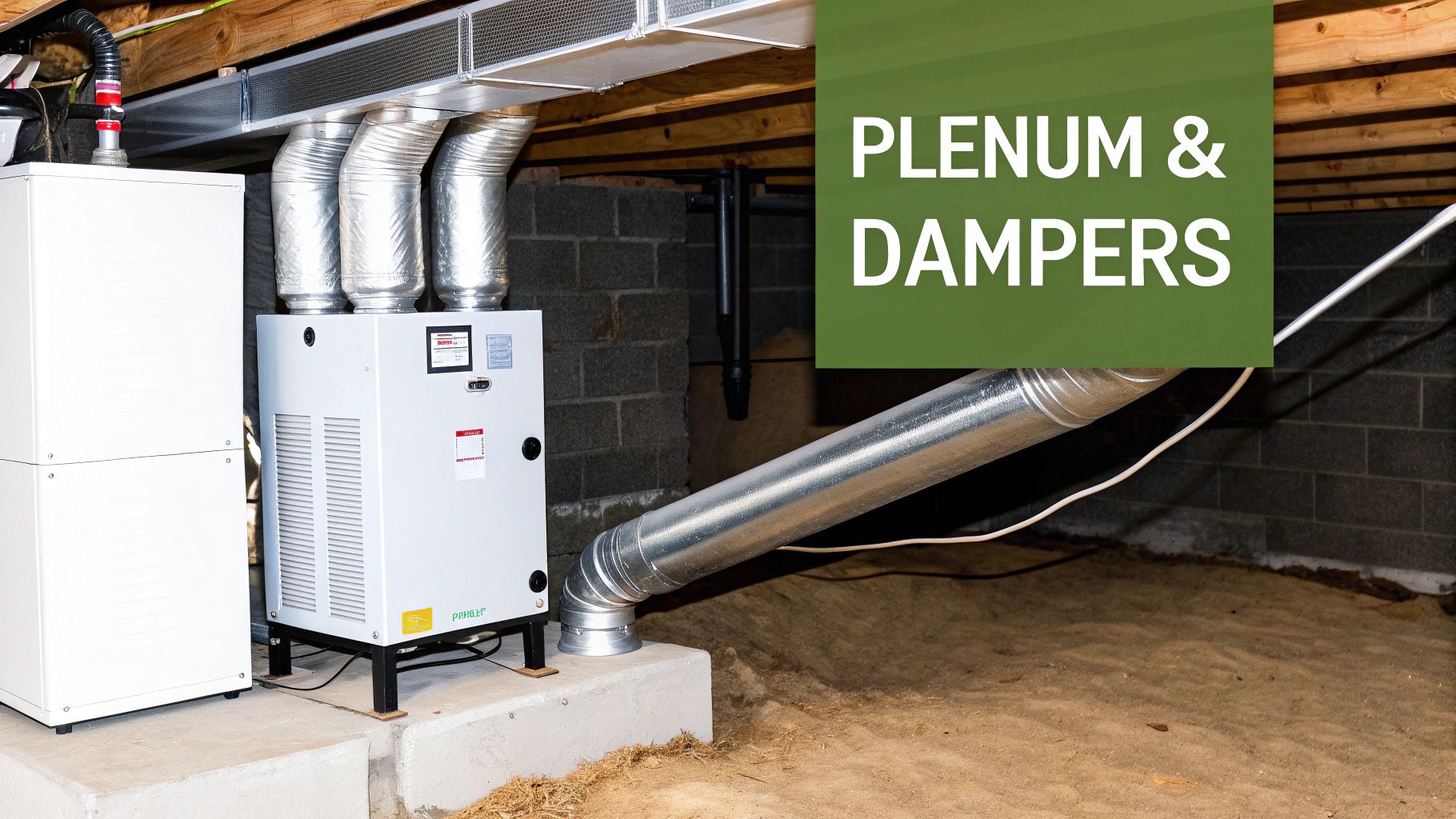

The Heart of the System: Plenums and Dampers
The journey for all that comfortable, conditioned air in your home starts and ends at the components hooked directly to your furnace or air handler. These are the central hubs for distribution; without them, your HVAC system would have no way to manage the air it just worked so hard to heat or cool.
Think of your HVAC unit as the terminal at an airport. The supply plenum is the main departure hall where all the freshly treated air gathers before getting sent on its way. This is typically a large sheet metal box attached right to the output of your furnace or AC, which pressurizes the air and gets it ready for distribution throughout your house.
On the flip side, the return plenum acts as the arrivals hall. It’s another large box, but this one is connected to the intake side of the HVAC unit. Its job is to collect all the stale, untreated air from your home so it can be filtered and reconditioned for another trip. These two plenums work together in a constant, balanced cycle to keep air flowing exactly where it needs to.
Directing the Flow: Takeoffs and Dampers
So how does the air get from that main plenum into the smaller ducts that snake through your walls and ceilings to each room? That's where takeoff fittings come in. These are specially designed connectors, either round or rectangular, that are cut directly into the sides of the plenum. Each takeoff is like a specific gate at the airport terminal, marking the beginning of an individual duct run to a single destination.
Once the air is moving through those runs, it needs a little direction. This is the job of dampers. These are essentially adjustable metal plates located inside the ducts that act as the traffic controllers for your home's airflow.
By opening or closing dampers, you can fine-tune exactly how much conditioned air gets sent to different areas of your home. This process, known as balancing, is the secret to achieving consistent temperatures and finally getting rid of those frustrating hot or cold spots in certain rooms.
Getting your dampers adjusted correctly can make a world of difference in your home's comfort and efficiency. But if your ductwork is poorly sealed or managed, you could be losing a surprising amount of energy. If you suspect problems, you can learn more from our homeowner's guide on how to seal air ducts, which is packed with practical tips to boost your system's performance.
It's clear that as HVAC systems become a standard feature in modern homes, the components that make them work are in high demand. The global market for air ducts was valued at around USD 8.94 billion back in 2021 and is projected to climb to USD 12.16 billion by 2028. According to Fortune Business Insights, this growth shows just how much focus is being placed on creating energy-efficient and comfortable indoor spaces, both at home and at work.

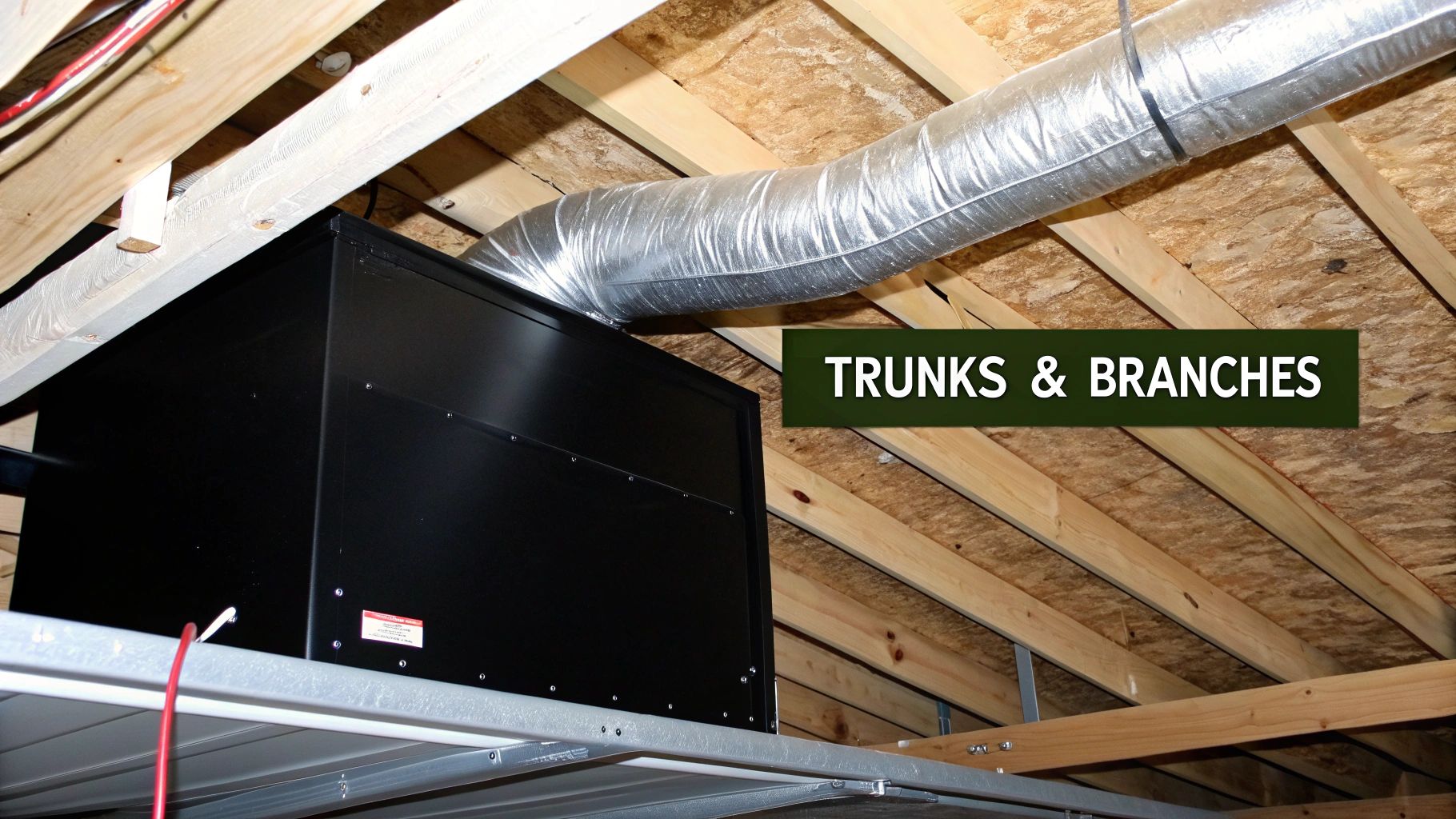

Navigating the Pathways: Trunks and Branches
Once the conditioned air leaves the central plenum, it’s time for it to travel through the rest of your home. This is where the main parts of ductwork designed for transport, the trunks and branches, take over.
Think of your plenum as the main distribution center. From there, the duct trunks act like major highways, carrying huge volumes of air toward different zones of your home. These are the biggest ducts you'll see, often running the entire length of a basement, crawlspace, or attic.
Splitting off from these highways are the smaller branch ducts. Consider these the local roads that deliver a precise amount of air to each individual room, ending their journey at the registers in your walls, floors, or ceilings. A well-designed system ensures this network of highways and local roads works in perfect harmony to deliver balanced airflow everywhere.
Choosing the Right Ductwork Material
The material your ducts are made from is just as critical as their layout. You'll find a wide variety of materials, from classic galvanized steel and aluminum to versatile flexible ducting and even specialized fabric ducts. Each has its place, and the right choice depends on factors like durability, cost, and how easy it is to install.
For example, galvanized steel has been a long-time favorite for its sheer strength and resistance to rust, while flexible ducts are a lifesaver in tight or tricky spaces. While industry research shows a variety of materials in use, residential homes typically stick to a few key options.
Here’s a quick rundown of the most common materials you'll find in homes and what they're best used for.
Comparing Common Ductwork Materials
Ultimately, the best systems often use a combination of these materials, leveraging the strengths of each one where it makes the most sense.
The Critical Role of Sealed Joints
No matter what material is used, the connections where duct sections meet are the system's Achilles' heel. Every single joint, seam, and connection has to be perfectly sealed. Even a tiny, one-inch gap can leak an incredible amount of conditioned air into your attic or crawlspace.
Leaky ducts can account for up to 30% of a home's heating and cooling energy loss. This forces your HVAC system to work much harder to maintain your desired temperature, leading directly to higher energy bills and reduced comfort.
Properly sealed joints aren't just a "nice-to-have," they're absolutely essential for an efficient system. Technicians use professional-grade materials like mastic sealant or high-quality foil tape to create an airtight seal at every connection point. This straightforward but crucial step ensures that the air your system pays to heat or cool actually makes it into your living spaces.
Because these seals can degrade over time, regular checks are a smart move. If you're curious about what a professional looks for, check out our ultimate guide to HVAC duct inspection.
Connecting the Network: Elbows, Wyes, and Fittings
Let's be realistic: ductwork almost never gets to travel in a perfectly straight line from your HVAC unit to a room. Your home's structure is a maze of support beams, plumbing lines, and electrical wiring, creating a complex obstacle course for air to navigate. This is where specialized connectors, some of the most critical parts of ductwork, step in to guide the air exactly where it needs to go.
Think of these fittings as the on-ramps, off-ramps, and turnabouts for your ductwork highway. Without them, your airflow would hit a dead end, causing pressure to build up and tanking your system's efficiency. These components ensure the conditioned air has a smooth, uninterrupted journey to every room.
Navigating Turns and Splits
The most common connectors you'll find are elbows, wyes, and reducers. Each one has a very specific job, and they are the unsung heroes responsible for maintaining air velocity and preventing the kind of turbulence that leads to noisy operation and wasted energy.
Here’s a quick look at how these key players direct the flow of air:
Elbows: Just like a turn in the road, an elbow fitting changes the direction of airflow. They typically come in 45 and 90-degree angles, allowing ducts to snake around structural elements without getting kinked or crushed. A smooth, curved elbow is always better than a sharp, squared-off turn, which creates a ton of air resistance.
Wyes: A wye fitting looks just like the letter "Y," and it functions like a fork in the road. It splits one main duct into two separate branches, a move that's absolutely essential for distributing air from a single trunk line to different rooms or zones.
Reducers: This fitting helps a duct transition smoothly from a larger size to a smaller one. Reducers are used as air travels further from the plenum to maintain the right air velocity and pressure, making sure rooms at the end of the line get just as much airflow as the ones closer to the source.
Badly designed or poorly installed fittings create turbulence and bottlenecks, basically, traffic jams for your airflow. This not only makes your system annoyingly loud but also forces your furnace or AC to work much harder, increasing wear and tear over time.
Keeping this intricate network of fittings clean is just as important as keeping the main ducts clean. For a deeper dive, you can check out our home maintenance tips on how to clean your air ducts. A clear path lets these specialized parts do their job without any extra strain.

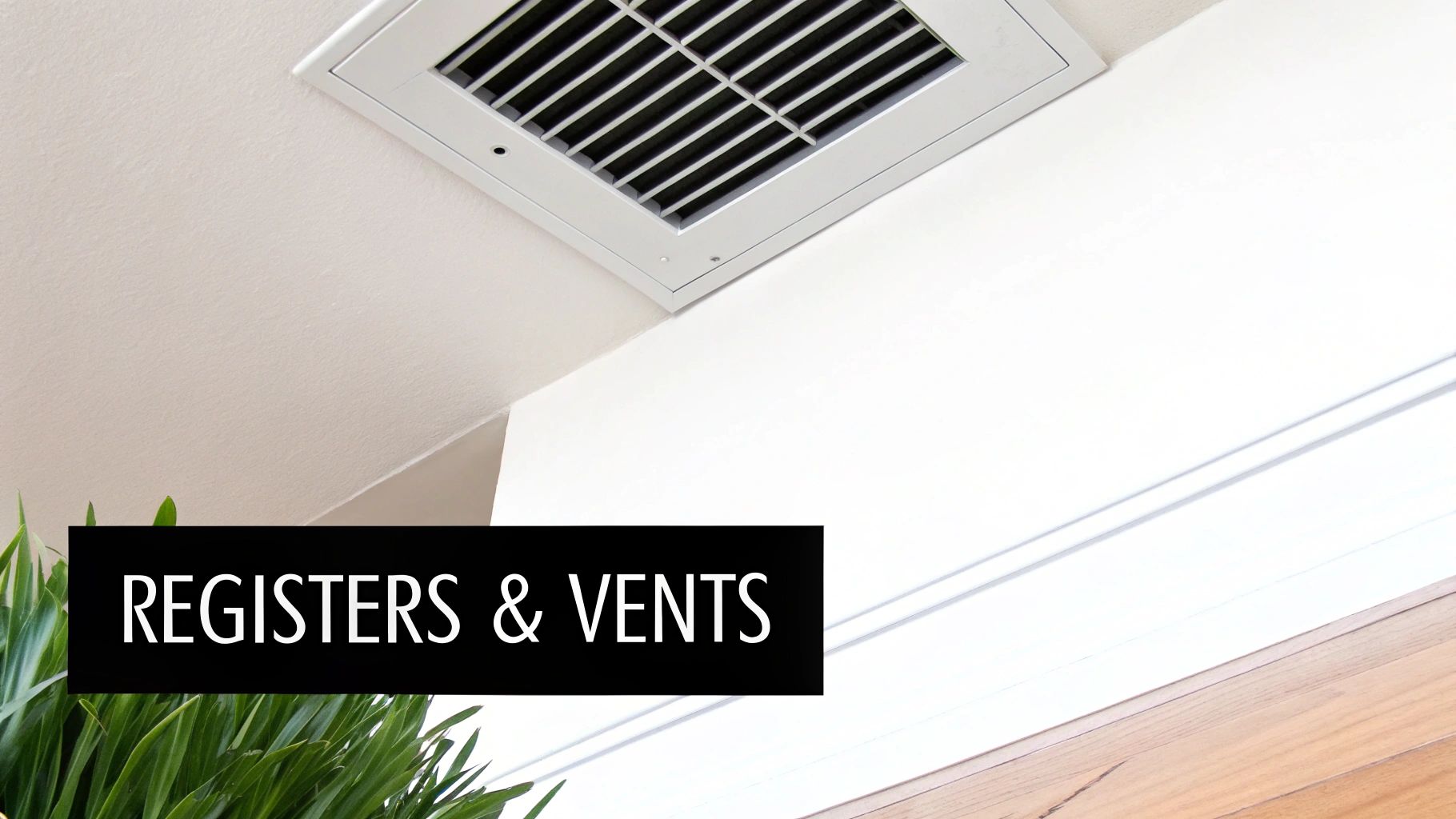

The Final Destination: Registers, Grilles, and Vents
After a long journey through your home's hidden duct network, the conditioned air finally makes its grand entrance. The parts you see every day, the registers, grilles, and vents, are the final touchpoints, delivering comfortable air into your rooms and pulling old, stale air back for another round of conditioning.
While they might look similar, each of these components plays a very different role in your home's comfort. A supply register is the exit point where heated or cooled air flows into a room. Most have adjustable fins or a little lever to control a damper, letting you fine-tune the airflow's direction and volume. Think of it as the nozzle on a hose.
On the flip side, a return grille is the entry point for air heading back to the HVAC unit. Its only job is to pull room air into the ductwork so it can be filtered and re-conditioned. You’ll notice they don’t have dampers; they're all about collection, not control.
The Unseen Connection: Duct Boots
So, how does the air get from that big duct in the ceiling to the register on your wall? That’s where a crucial little piece called a duct boot comes in. Usually shaped like its namesake, this fitting creates a smooth transition from the main duct line to the opening for the register or grille.
A snug, well-sealed duct boot is non-negotiable for an efficient system. If that connection is leaky, a surprising amount of conditioned air will escape into your wall cavities instead of your living space. It's a classic energy-waster that undermines your entire HVAC system's hard work.
The placement and style of your registers and grilles are more than just cosmetic. They play a huge role in how well air circulates in a room, ensuring the conditioned air mixes properly to eliminate hot or cold spots and create a truly comfortable environment.
Keeping the Endpoints Clear for Optimal Performance
Because they're the system's gateways, registers and grilles are magnets for dust, pet hair, and all sorts of household debris. Keeping them clean is one of the simplest things you can do to maintain your HVAC system's health. A blocked register makes your system strain to push air out, while a clogged return grille just sucks those contaminants right back into your ducts.
This push for better performance and efficiency is a huge driver in the industry. In fact, the global air duct market is expected to hit USD 7.6 billion by 2035, growing at a steady 3.9% each year. This growth is all about the increasing demand for high-performing, energy-saving climate control in homes and businesses.
Keeping your vents clean doesn't just help with airflow; it’s also key to preventing moisture buildup and the problems that come with it. If you're seeing issues around your vents, our guide on how to stop mold around air vents has some specific, proven solutions.
Bringing It All Together for an Efficient Home
So, we've followed the air from the moment it leaves your HVAC unit, journeying from the central plenum all the way to the registers in your living room. Every single one of those components is a link in a chain. If just one part fails or underperforms, the comfort and efficiency of your entire home suffer.
Think of it this way: your ductwork isn't just a random collection of metal tubes. It's a single, interconnected system built for one simple purpose: delivering comfort efficiently.
The trip starts as conditioned air pools in the supply plenum. It then shoots down the duct trunks, which act like the main highways of your system. From there, the air peels off into smaller branch ducts, guided around corners by fittings like elbows, until it finally flows into your rooms through the supply registers.
For this whole process to work, that pathway has to be sealed and clear. Even what seems like a minor issue can have a major impact.
A well-designed and properly maintained duct system is the foundation of an efficient home. Neglecting it can lead to wasted energy, poor indoor air quality, and uncomfortable hot or cold spots.
Maintaining Your System for Peak Performance
To keep this vital network running smoothly, you have to be proactive. Regular maintenance is what stops tiny issues from snowballing into expensive headaches, ensuring every piece of the puzzle is doing its job. A little bit of care goes a long way.
Here are the key maintenance steps you'll want to prioritize:
Seal All Leaks: Even hairline gaps in duct seams can bleed a shocking amount of energy. Getting a professional to seal them with mastic or foil tape ensures the air you're paying to cool or heat actually gets where it's supposed to go.
Keep Ducts Clean: Over the years, ducts become magnets for dust, allergens, and other gunk. Regular cleaning doesn't just improve your air quality; it also prevents blockages that put a major strain on your HVAC unit.
Ensure Proper Insulation: If your ducts run through unconditioned spaces like an attic or crawlspace, insulation is non-negotiable. It prevents costly energy loss and stops condensation in its tracks.
Taking these steps ensures your system is always running at its best. For a more detailed breakdown, you can check out our guide on creating your essential HVAC maintenance schedule, which gives you a clear timeline for keeping everything in top shape.
Got Questions About Your Ductwork?
You've got the basics down, but that's usually when the real-world questions pop up. Let's tackle some of the most common things homeowners ask about how their ductwork actually performs day-to-day.
What Is Residential Ductwork Usually Made Of?
Walk into most attics or crawlspaces, and you're going to find two main players: galvanized steel and flexible ducting. Think of galvanized steel as the superhighway of your HVAC system; it’s tough, smooth, and perfect for the main trunk lines that move a lot of air efficiently.
Flexible ducting, on the other hand, is like the local side streets. It's used to connect those big trunk lines to the vents in your rooms, especially when the path is a little tricky or tight. A really well-designed system will almost always use a mix of both, playing to the strengths of each material.
How Do I Know If My Ducts Need to Be Cleaned or Fixed?
Your house will usually give you some pretty clear hints when your ductwork is in trouble. If you pay attention to these little clues, you can often catch a small problem before it turns into a major headache.
You should probably get your ducts inspected if you notice:
Puffs of dust blowing out of your vents when the heat or AC kicks on.
Weird noises like rattling, whistling, or even banging coming from inside the walls or ceiling.
Wildly uneven temperatures, where some rooms feel like a sauna while others feel like a meat locker.
A sudden, unexplained jump in your monthly energy bills.
Any of these are a solid sign that it's time to have a professional take a look for leaks, clogs, or other damage.
What's the Difference Between a Register and a Grille?
This is a common mix-up, but they actually do opposite jobs. A register is the vent cover that delivers conditioned air into a room. The key feature is that it almost always has a little lever or wheel; that's the damper, which lets you control how much air comes out.
A grille, however, covers a return duct. Its only job is to pull stale air back to the furnace or air handler to be heated or cooled again. It's just a cover with no damper because you want it to pull in as much air as possible, not restrict it.
Here's an easy way to remember it: Registers let you regulate the air coming in. Grilles just grab the air going out. Knowing this helps you figure out if you're dealing with an airflow delivery or return problem.
Why Are Some Rooms So Much Hotter or Colder Than Others?
This is easily one of the biggest complaints we hear, and it almost always points back to an airflow issue in the ductwork. When you have uneven temperatures, your conditioned air isn't getting where it needs to go.
The culprit could be anything from leaky ducts spilling all your expensive cool air into the attic, to dampers that are out of balance and choking off airflow to certain rooms. Sometimes, a branch duct might have gotten crushed, or it was just sized wrong from the get-go. A pro can hunt down the exact cause and get things balanced out, whether that means sealing leaks or adjusting the airflow.
If any of these problems sound familiar, a professional inspection might be in order. The certified technicians at Covenant Aire Solutions can pinpoint issues with any part of your ductwork and get your home feeling comfortable again. Visit us online or give us a call to schedule your service. Find out more at covenantairesolutions.com.
